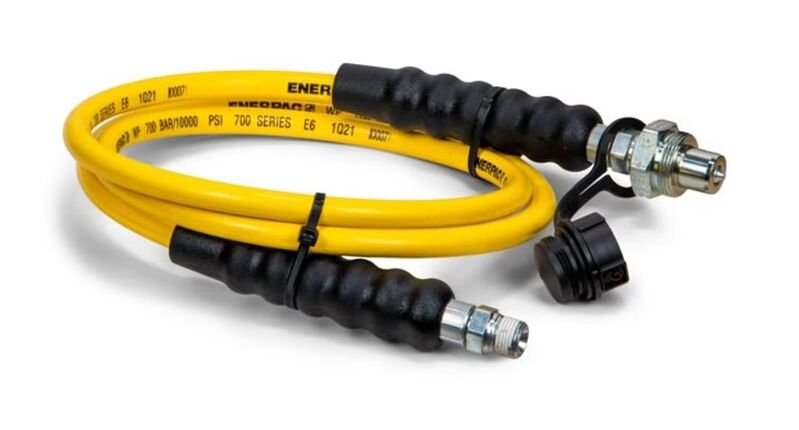

HC7206 High Pressure Hydraulic Hose

H700-Series Hoses have a safety factor of 4:1 to provide the reassurance and reliability needed for demanding high-pressure applications.
Each hose contains two layers of steel wire braids covered by a polyurethane sleeve - providing the strength and abrasion resistance needed for repeated use in tough working environments.
Specifications:
Maximum Operating Pressure (bar): 700
Internal Diameter (mm): 6,4
End One Assembly: 3/8" NPTF
End Two Assembly: CH604
Capacity (cm3): 57,91
Hose Oil Capacity (cm3): When using greater hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for 6,4 mm inside diameter hoses: Capacity (cm3) = 32,1699 x Length (m)
Length (m): 1,8
End One Coupler: 3/8" NPTF
End Two Coupler: CH604
Weight (kg): 1,0
