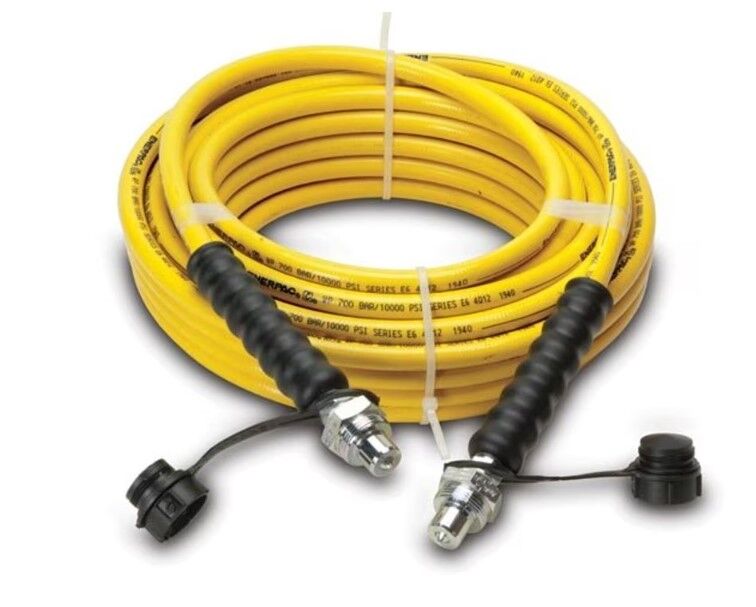

HC7206C High Pressure Hydraulic Hose Assembly

H700-Series Hoses have a safety factor of 4:1 to provide the reassurance and reliability needed for demanding high-pressure applications.
Each hose contains two layers of steel wire braids covered by a polyurethane sleeve - providing the strength and abrasion resistance needed for repeated use in tough working environments.
Specifications:
Maximum Operating Pressure (psi): 10,000
Internal Diameter (in): 0.25
End One Coupler: CH604
End Two Coupler: CH604
Oil Capacity (in3): 3.54
Hose Oil Capacity (in3): When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25" internal diameter hoses: Capacity (in3) = .5892 x Length (ft)
Length (ft): 6
Weight (lbs): 2.4
