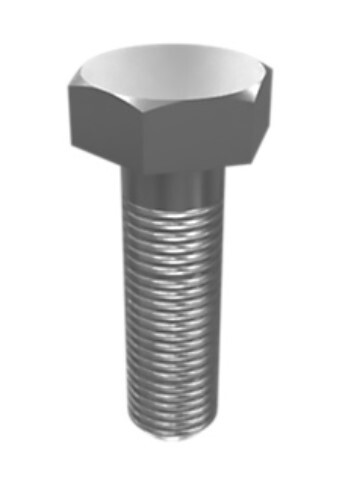

Hex Head Bolt

Hex Head Bolt
Description:
Cat fastener parts are designed for specific applications based on size, strength, clamp load, and past performance. This is information other manufacturers do not have. They are selected to last until rebuild or the life of the machine. While it may seem as though non-Cat hardware and fasteners are suitable for your machine, no other company knows your equipment like we do.
Hex head bolts/screws offer the most robust driving feature.
Attributes:
Cat fasteners are manufactured to precise specifications and are built for durability, reliability, productivity
Strength & Quality – Fasteners meet or exceed ISO, ASTM, ASME & SAE requirements.
Cat bolts, nuts, and washers are designed to work together as a system for maximum clamping force.
Coatings that meet special requirements for different applications (RoHS compliant).
Applications:
Cat bolts and the matching hardened washers and nuts form a performance based system which produces consistently high clamp loads. You can trust Cat Fasteners to help you build it, maintain it, or fix it - for most machine and workshop applications throughout the world.
Specs:
Grade: 10.9
Color Notes: Bolts sizes M6 through M12 with the new Zinc Flake finish will be black. Bolts sizes M14 through M36 with the new Zinc Flake finish will be gray. Until stock of the current finish is depleted, you may receive either the current or new bolt color.
Finish: Zinc Flake
Total Bolt Length - 3 (mm): 20
Thread: Coarse Thread UNC
Head Height - 4 (mm): 4
Finish Notes: Caterpillar is changing from Zinc Plating to a Zinc Flake finish for many bolts. The new coating improves corrosion protection to 720 hours. Until stock of the current plating is depleted, you may receive either finish due to the exhaust process.
Head Width - 5 (mm): 10
Grip Length - 2 (mm): 3
Overall Length (mm): 20
Thread Size (mm): M6
Hole Thread Pitch: 1.00
Thread Size (dia x pitch) (mm): M6X1
Bolt Length (mm): 20
Head Height (mm): 4
Grip Length (mm): 3
Drive (mm): 10
Bolt Type: Hex Head Bolt
Material: Steel
Material Description: ISO 898-1 Class 10.9. Head Marking - 10.9 (1040 MPa Ultimate Tensile Strength)
Coating: Zinc Flake
