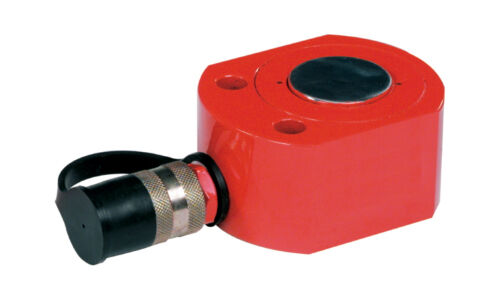

These low profile "pancake" cylinders are used where clearances are limited. For working pressures to 10,000psi A unique heavy-duty return spring provides rapid return of the piston.
"LJ" Series Low Profile Spring Return Hydraulic Cylinders:
Item No
Capacity
Stroke
Retracted
Extended
Piston Dia.
Outside Dia.
Oil Capacity
Oil Port Thread
Weight
LJ005
5 Ton
6mm
33mm
39mm
17mm
65 x 44mm
5cc
3/8rpt
0.8kg
LJ010
10 Ton
11mm
43mm
54mm
28mm
84 x 60mm
18cc
3/8rpt
1.6kg
LJ020
20 Ton
11mm
52mm
63mm
40mm
102 x 76mm
32cc
3/8rpt
2.7kg
LJ030
30 Ton
12mm
60mm
72mm
50mm
118 x 95mm
75cc
3/8rpt
4.3kg
(LJ030)
SKU
LJ030
Barcode #
9310135716101
Brand
T&E
Shipping Weight
4.5000kg
Shipping Width
0.100m
Shipping Height
0.100m
Shipping Length
0.120m
