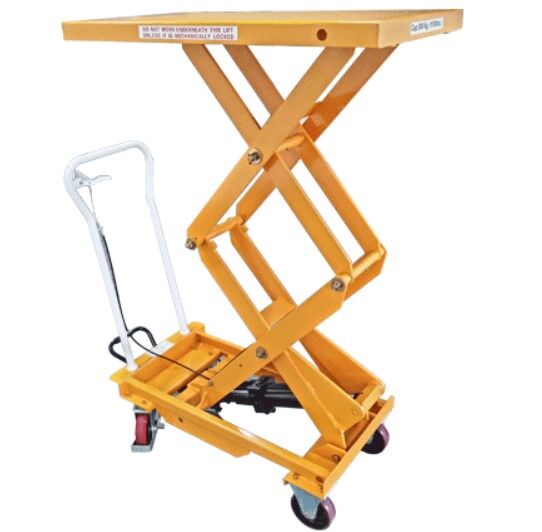

Hydraulic Double Scissor Lift Table

Industrial grade, heavy duty, double scissor, hydraulic lift table that is designed to allow the operator a safe and ergonomic method of lifting and manipulating a heavy load.
Manufactured to European CE standard
Heavy duty welded steel frame fitted with strengthening gussets (BS30D, BS50D, BS80D)
Frame galvanised and finished in safety yellow powdercoat for corrosion resistance and UV stability
Greasable scissor axles fitted with lock tabs and pinned castle nuts for strength and reliability
Heavy duty bearing slide table with unique overhanging facility (BS30D, BS50D, BS80D)
All models fitted with safe working maximum height mechanical safety locks
All models feature 2 x lockable, swivel castors with brake and toe guards and 2 x fixed castors
SPECIFICATIONS:
Table Size: 1010 x 520mm
Capacity: 500kg
Table High: 1585mm
Table Low: 435mm
Stroke: 1150mm
Wheel Size: 150mm
