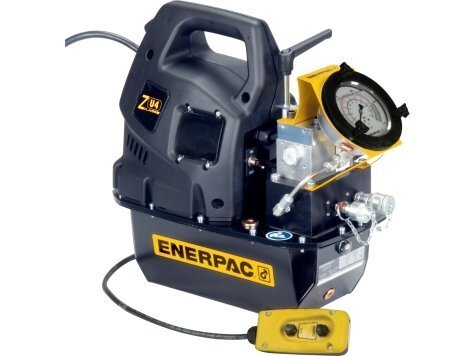

Hydraulic Electric Torque Wrench Pump

Model : ZU4208BE-QH
Series : ZU4T
Product Lines : Bolting Tools
Patented Z-Class pump technology provides high by-pass pressures for increased productivity important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain doubleacting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large torque wrenches. Choosing the right ZU4 torque wrench pump for your application is easy.
Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18 percent less current draw than comparable pumps
Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
High-strength, molded composite shroud protects motor and electrical components, while providing an ergonomic, non-conductive handle for easy transport
Low-voltage pendant provides additional safety for the operator
Valve technology reduces oil operating temperatures and withstands contaminants to increase pump reliability
Factory installed 10,000 coupler for use with S- and W-Series or other wrenches
Classic Electric Torque Wrench Pump
The Classic has an analog gauge and traditional electro-mechanical components (transformers, relays and switches) in place of solidstate electronics. The Classic delivers durable, safe and efficient hydraulic power.
Basic electrical package includes mechanical contactor, ON/OFF toggle switch, pendant with electro-mechanical pushbuttons, 24V transformer timer and operator accessible circuit breaker.
Maximum Operating Pressure (psi)10,000
For Use With Torque WrenchesFor use with all Enerpac torque wrenches
Reservoir Capacity (in3): 416
Usable Oil Capacity (gal): 1.75
Maximum Flow at Rated Pressure: 60 in3/min
Output Flow Rate (in3/min): 100 psi700
Output Flow Rate (in3/min) 700 psi535
Output Flow Rate (in3/min) 5000 psi76
Output Flow Rate (in3/min): 10000 psi60
Motor Size (hp):1.7
Motor Hertz50/60 Hz
Motor Phases: 1 Ph
Motor Voltage:208-240 VDuty Cycle
Intermittent
Valve Operation: Solenoid
Valve Type4-way, 2-position
Power Source:Electric
Pump Control:Pendant
Motor Electrical Specification:208-240 V, 1 Ph, 50/60 Hz, European plug CE RF compliant
Weight (lbs):83
