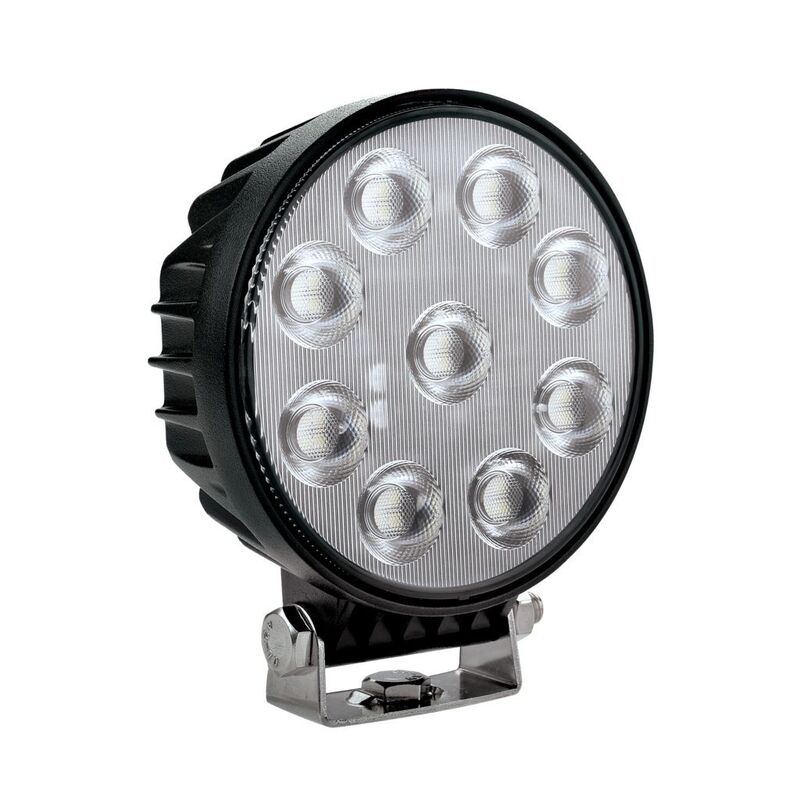

4" Round LED Worklamp 9 - 36 Volt 36 Watt
SKU:IWL3601RF
Ignite 4" Round LED Worklamp 9 - 36 Volt 36 Watt
60 deg Flood (Spread) Beam Pattern
36 x 1 Watt High Intensity Lumileds LED's
3,600 Effective Lumens, 3,200 Raw Lumens and 5,700K
1 Lux 54m and 2,940cd Peak Beam Intensity
Current Draw: 2amp 12 Volt and 1amp 24 Volt
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Polycarbonate Lens
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy (ADC12) Housing with integrated Heat-SinkStainless Steel (SUS201) Single Bolt Mount Bracket and Hardware
350mm 2 Wire Sheathed Lead
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant up to 10G
50,000 Hours LED Lifespan
ECE R10, CE Approved and EMC Compliant
IP68 Rating
Environment Temperature: -40 degC appro. +60 degC
2 Year Warranty
Specifications:
Series: Other
Type: LED
Shape: Round
Voltage: Multivolt
Watts: Other
Beam Type: Flood
No. of LED: 36
Mount: Single Bolt
Width (mm): 110
Height (mm): 132
Depth (mm): 47
60 deg Flood (Spread) Beam Pattern
36 x 1 Watt High Intensity Lumileds LED's
3,600 Effective Lumens, 3,200 Raw Lumens and 5,700K
1 Lux 54m and 2,940cd Peak Beam Intensity
Current Draw: 2amp 12 Volt and 1amp 24 Volt
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Polycarbonate Lens
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy (ADC12) Housing with integrated Heat-SinkStainless Steel (SUS201) Single Bolt Mount Bracket and Hardware
350mm 2 Wire Sheathed Lead
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant up to 10G
50,000 Hours LED Lifespan
ECE R10, CE Approved and EMC Compliant
IP68 Rating
Environment Temperature: -40 degC appro. +60 degC
2 Year Warranty
Specifications:
Series: Other
Type: LED
Shape: Round
Voltage: Multivolt
Watts: Other
Beam Type: Flood
No. of LED: 36
Mount: Single Bolt
Width (mm): 110
Height (mm): 132
Depth (mm): 47
(IWL3601RF)
SKU | IWL3601RF |
Barcode # | 9323327945696 |
Brand | Ignite |
Shipping Weight | 1.0000kg |
Shipping Width | 0.150m |
Shipping Height | 0.100m |
Shipping Length | 0.150m |
