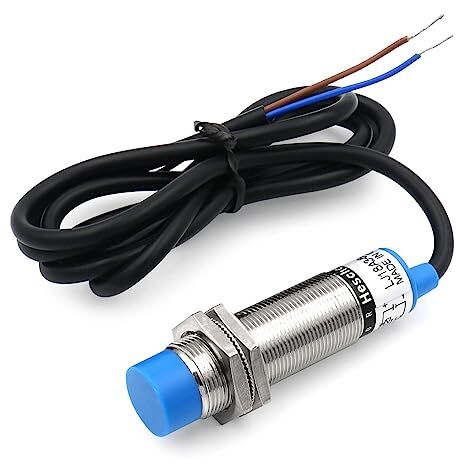

Inductive Proximity Npn Sensor - Lj18A3-8-Z/Bx

Model number LJ18A3-8 series
External dimensions: M18x1x68
Installation type: Non-shielded
Detection distance: 8mm, 15mm, 20mm
Setting distance: 6.4 mm
Supply voltage: 6-36Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz
Output current: DC type: 300mA max; AC Type: 400mA
Standard detected object: Mild steel (18x18x1mm)
Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency: 500Hz
Matched mounting bracket: M18 90 degree bending mounting bracket, M18 straight mounting bracket
Output indication: Red LED
Short-circuit protection: No
Reverse connection protection: Yes
Insulation resistance: 50M um min (between charging part and housing)
Dielectric strength: 1000Vac, 1min (between charging part and housing)
IP Rating: IP65
Operating temperature: -25 to 70 degC (13 to 158 degF)
Cable length: 1.2m, PVC cable
Material: Case: Brass-nickel plated; Sensing surface: ABS
Alias name: LJ18A3-8 series cylinder inductive proximity switches
