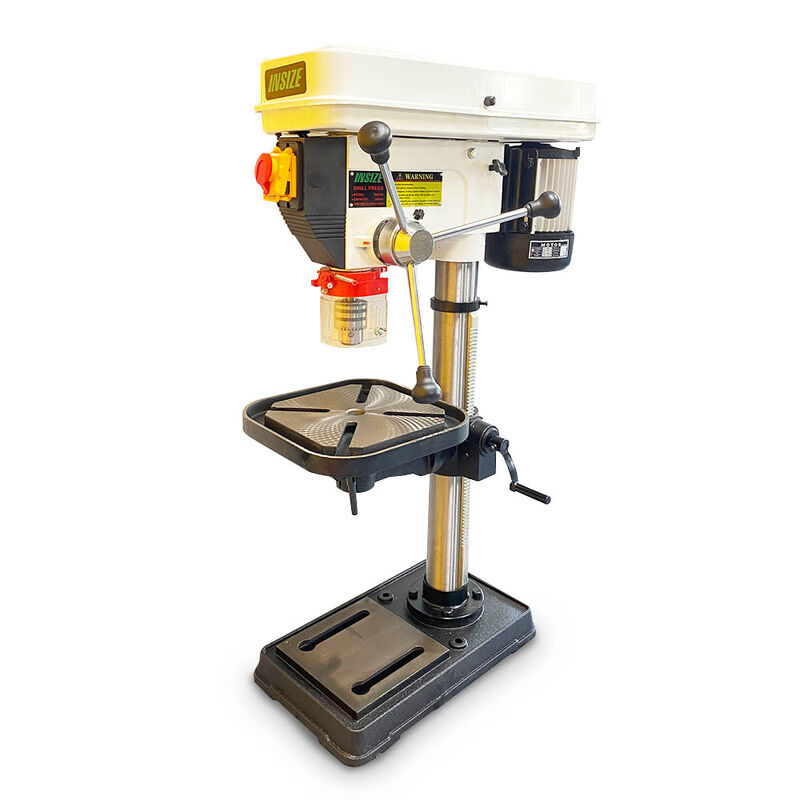

Insize Bench Drill 20mm

Heavy duty quality casting, main body 1 piece construction.
Main column tube thick walled giving greater rigidity.
Efficient and smooth V belt drive system with adjustable spindle speeds.
Belt tensioning lever quick action type.
Work table slotted in base to allow rigid mounting of work.
Left and right tilt work table, rotation to 45 percent with gauge.
Heavy duty rack and pinion work table height adjustment with locking lever.
Industrial duty 3 piece drilling lever with depth stop.
Safety drilling chuck guard, adjustable with flip up screen.
No Voltage Release Safety Switch.
Quality copper wound 240 volt fan cooled, aluminium finned electric motor.
16 Spindle Speed: 220, 310, 350, 470, 480, 500, 640, 680, 700, 750, 1270, 1370, 1520, 1910, 2040 and 2840 RPM
SPECIFICATIONS:
Type Bench
Motor: 750W/1HP 240v-3.6Amp
Chuck Size: 3-16mm B16
Drilling Capacity(max.): 20mm
Spindle Travel: 82mm
Spindle Taper: 2MT
Quill Diameter: 47mm
Collar Diameter: 55mm
Spindle Speed Steps: 16
Spindle Speed Range: 220-2840rpm
Swing: 360mm
Working Table: 290 x 290mm
Base Plate: 460 x 280mm
Column Diameter: 72mm
Emergency: Stop
NVR Safety Switch: Yes
Micro switch on Pulley Guard: Yes
Chuck Guard: Yes
Overall Height: 990mm
Weight: 57/53kg
Includes:
16mm keyed drill chuck and arbor
Chuck key to suit
Drill drift tool to remove drill chuck or taper shank drills
