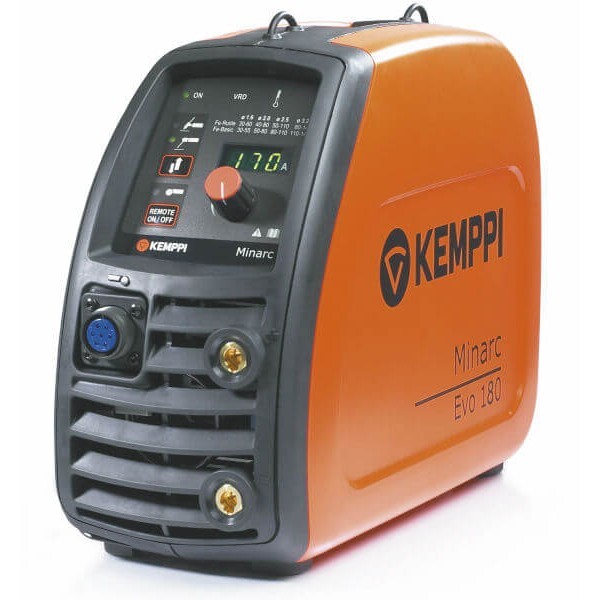

Kemppi Miniarc Evo 180

Outstanding welding performance is no overstatement. Every element of Minarc Evo 180 is designed to meet the needs of professional welders on the move. Where size, weight and welding quality are concerned, there is no equal.
Features:
Premium welding performance
Use with all electrode types
Use with long supply cables
PFC technology for ultimate energy efficiency
High current output and duty cycle
Lightweight and portable
Robust and durable
Precise lift TIG technology
Mains network or generator use
Optional remote control
Specifications:
Connection voltage 1 approx. 50/60 Hz: 230 V ±15 percent
Fuse (delayed): 16 A
Minimum generator power: 5.5 kVA
Output (40 oC) TIG: 100 percent ED, 130 A / 15.2 V
Output (TIG) 35 percent ED: 180 A/17.2 V
Output (TIG) 60 percent ED: 150 A / 15 V
Output (TIG) 100 percent ED: 130 A/15.2 V
Output (MMA) 30 percent ED: 170 A/26.8 V (140AU: 28 percent ED 140 A/25.6 V)
Output (MMA) 60 percent ED: 140 A / 25.6 V
Output (MMA) 100 percent ED: 115 A/24.6 V (140AU: 80 A/23.2 V)
Open circuit voltage: 90 V (VRD 30 V; AU VRD 12 V)
Open circuit voltage: 90 V
Stick electrode sizes: 1.5...4 mm
Stick electrode sizes: 1.5…4.0 mm
Welding range (MMA): 10 A/15 V - 170 A/32 V
Welding range (TIG): 10 A/10 V - 180 A/30 V
Rated power at max. current 30 percent ED MMA 170 A / 5.7 kVA
Rated power at max. current 35 percent ED TIG: 180 A / 4.0 kVA
Power factor at 100 percent ED: 0.99
Efficiency at 100 percent ED (MMA): 84 percent
Operating temperature range: -20…+40 degC
Degree of protection: IP23S
Standards: IEC 60974-1 IEC 60974-10 IEC 61000-3-12
Weight (with connection cable): 5.85 kg
EMC class: A
Norms: IEC 60974-1, -10, IEC 61000-3-12
External dimensions LxWxH: 361 × 139 × 267 mm
Weight (no accessories): 5.4 kg
Waranty:
Kemppi 3 year warranty for parts and labor
