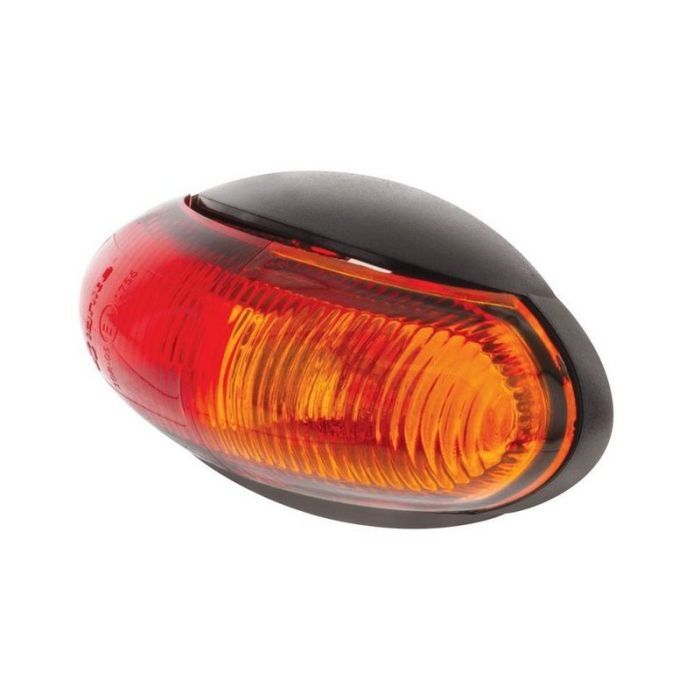

LED Amber / Red Clearence Lamp

Ignite LED Amber / Red Side Marker Lamp 10 - 30 Volt
Amber and Red Illumination
4 x High Intensity White LED's
Current Draw: 0.07amp at 12 Volt, 0.04amp at 24 Volt
Amber and Red Optical PMMA Polycarbonate Lenses
Black ABS Plastic Housing with mounting screws included
Surface Mount, low mounting depth for easy installation
Pre-wired 2 Wire 250mm Lead
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Reverse Polarity Protection
Sealed against Dust and Moisture
UV, Water and Shock resistant
ECE R10, CE Approved and EMC Compliant
ECE R91 Side Marker Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
IP67 Rating
Environment Temperature: -40 degC approx to +65 degC
Blister Qty: 1
2 Year Warranty
Suitable for OEM, Trucks, Rigid Bodies, Buses, Trailers and Custom Build applications
Note: ISL430A is the matching Amber Side Marker Lamp, ISL430W is the matching Front End
Position Marker Lamp and ISL430R is the matching Rear End Position Marker Lamp
Specifications:
Colour: Red / Amber
Type: LED
Shape: Oval
Voltage: Multivolt
Mount: Surface
Width (mm): 60
Height (mm): 34
Depth (mm): 26
