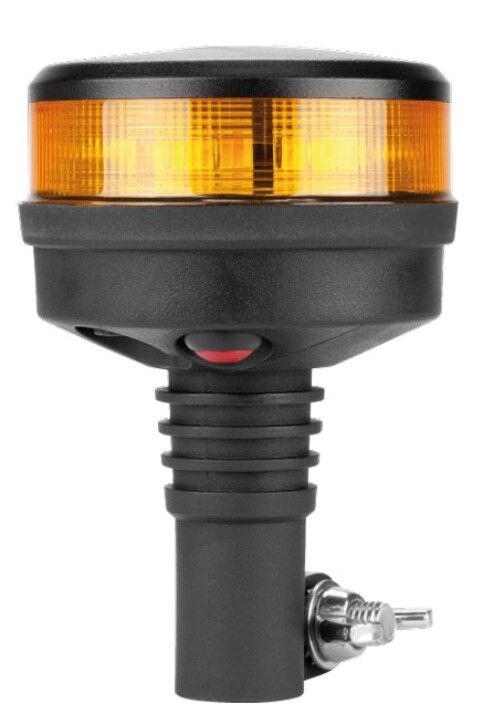

LED Beacon Micro Revolver Series 10-30V Amber DIN Pole Mount 32SMD LEDs 28W 10 Function SAE Class 1 90x135mm

Roadvision’s RB112 Series compact 360 degree high intensity beacons are at the forefront of automotive lighting technology..... Featuring state-of-the art LED technology, the REVOLVER Series of Roadvision LED beacons are specifically designed and engineered to not only meet, but exceed Australian and international regulations. With a tough Aluminium housing and impact resistant polycarbonate lens, the RB112 Series are built to last in even the toughest conditions. Featuring 32 SMD LED’s and with 10 selectable flash patterns - including single, double, triple, quad and simulated rotating - the RB112 Series are the perfect LED beacon for a wide range of industrial applications.
Compact low profile 10 function 360 deg high intensity beacons
Single, double, triple, quad & simulated rotating flash patterns
Multi-volt 10-30V input and low current draw
32 SMD LED’s produce 28W
100,000 hour rated LED lifespan
Maintenance free solid state technology
Tough polycarbonate lens & alluminium body
Waterproof IP67 rated and vibration proof
Compact low profile 112 x 48mm body
Available in 3 hole fixed, magnetic or DIN Pole mounts
EMC, ECE R10 & SAE J845 class 1 approved
Specifications:
Housing Material: Tough Aluminium
Lens material: Polycarbonate
Current Draw Amps: 1.9A 13.8V
Light Source: 32 SMD LED’s
Function: 10 Selectable Flash Patterns
Current Draw: 1.9A 13.8V
Lens Colour: Amber
Waterproof: IP67 Rated
Brand: Roadvision
Dimensions: 90x135mm
Approvals: EMC, ECE R10 and SAE class 1 approved
Mounting Type: DIN Pole Mount
Voltage: 10-30V Multi
Wiring: DIN Plug inc. in Pole Mount
Housing: Tough Aluminium
Warranty: 5 Years
Lens: Polycarbonate
LED Lifespan: 100,000 Hours
Flash / Rotation Rate: 10 Flash Patterns
LED Life Span: 100,000 Hours
