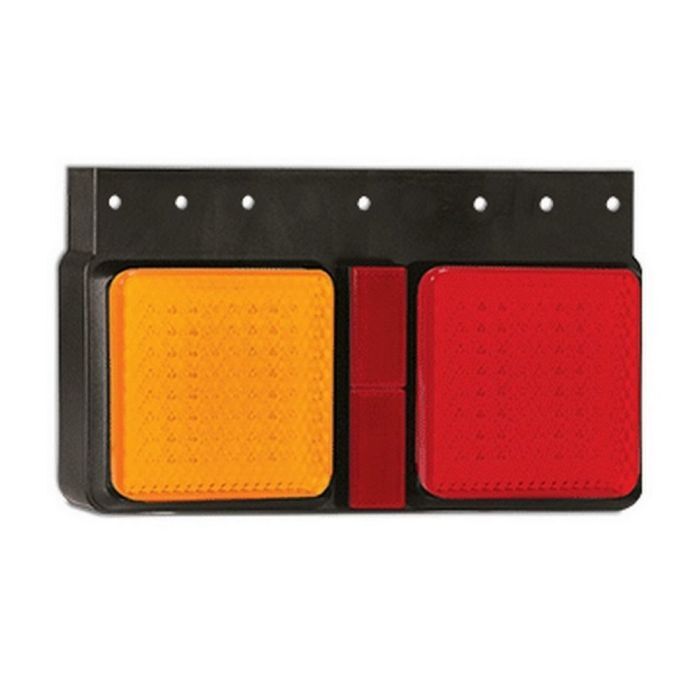

Lamp Stop Tail Indicator Left Hand Side Led 340 X 200Mm X 60Mm Retrofit

125 Series LED Double Combination Stop / Tail / Indicator Lamp 12/24 Volt
Left Hand Side unit
LED Retrofit replacement unit for Hino- Nissan- UD Trucks
Red and Amber Illumination
64 x High Intensity White LED's in each Stop / Tail and Indicator Lamp Modules
Red and Amber Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
Black ABS Plastic Housing with mounting screws included and inbuilt Retro Reflectors
Horizontal Surface Mount- with top or back mounting holes
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.42amps at 12 Volt and 0.26amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.06amps at 24 Volt Current Draw for Tail function
0.43amps at 12 Volt and 0.26amps at 24 Volt Current Draw for Indicator function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 33403
ADR 6/00 2A Rear Indicator Lamp specifications approved- CRN 33165
ADR 47/00 Reflector specifications app
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 340
Height (mm): 200
Depth (mm): 60
