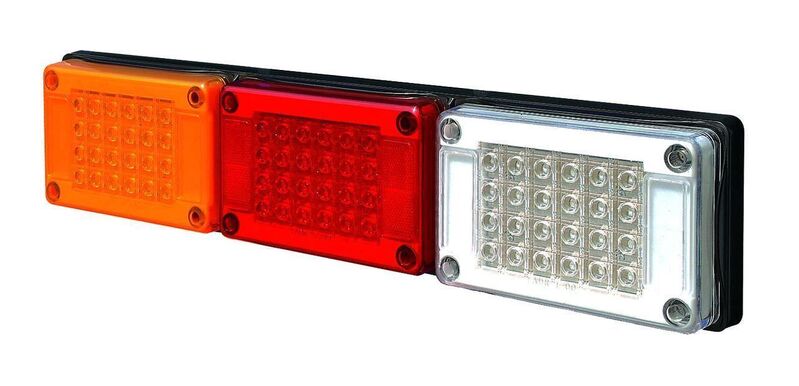

10-30V Stop/Tail/Indicator/Reverse Jumbo 604 x 132mm Triple Pod Surface Mount

Description:
Roadvision’s BR601 Series LED jumbo signal lamps deliver the durability of maintenance free LED technology and greater visibility providing increased safety. A complete heavy duty all-in-one solution with stop/tail, indicator and reverse functions. The BR601 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are dust and water proof and totally maintenance free, with a life span rated at 100,000 hours. With ROADVISION it’s FIT and FORGET.
Features:
Jumbo LED signal lamps, Multi-volt 10-30V DC input & low current draw, Brighter than conventional incandescent systems, 100,000 hour LED life span with solid state technology, Maintenance free, High impact ABS housing and sealed polycarbonate lens, Water and dust proof, Pre-wired with 300mm of sheathed tinned copper cable, Simple surface mount design, Retro-fits in place of existing jumbo lamps, ADR/ECE approved for all functions
Specifications:
Amperage - Stop/Tail: 0.1/0.05 Amps 13.8V DC
Amperage - Reverse: 0.2 Amps 13.8V DC
Amperage - Indicator: 0.1 Amps 13.8V DC
Mounting Hole C to C: 501mm and 325mm
Dimensions: 604 x 132 x 41mm
Mounting Hole Cut Out: 501mm & 325mm
Input Voltage: 10-30V DC
Cable Length: 300mm Sheathed
Brand: Roadvision
Lens - Material: Polycarbonate
Voltage - Input: 10-30V DC
No. of LED's: Ind- 24 LED's, S/T- 24 LED's, Rev- 24 LED's
Mounting Type: Surface Mount
Type: Stop/Tail/Indicator/Reflector/Reverse
