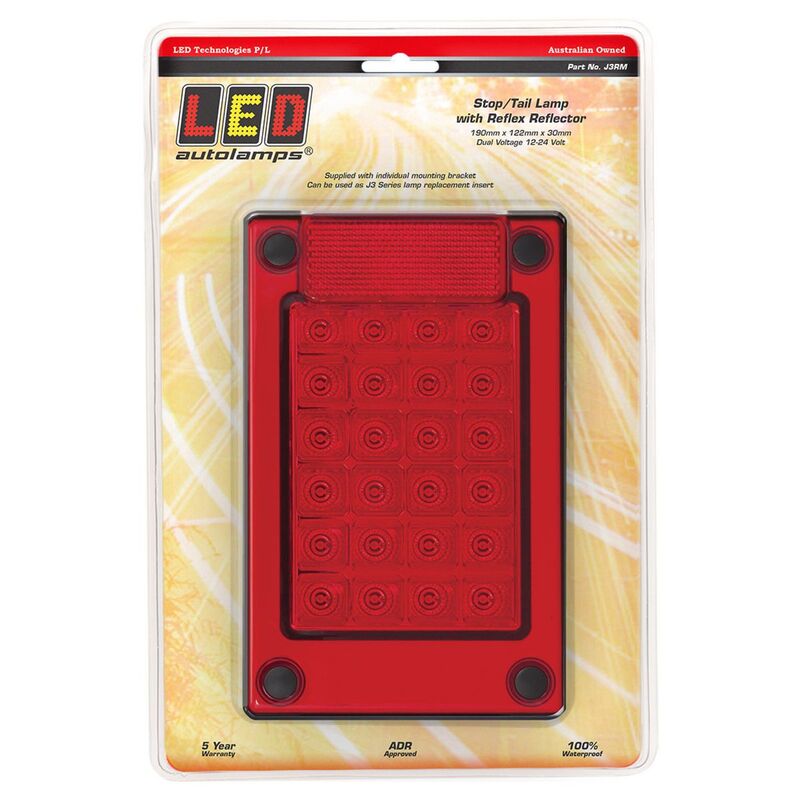

Led Red Indicator Lamp 12/24V Single

Jumbo Series LED Stop / Tail Lamp 12/24 Volt
Can be used as a replacement lamp in the J2 / J3 Series Combination Lamp Housing Assembly
Red Illumination
24 x High Intensity White LED's
Faceted Reflectors with Red Hardened Acrylic pattern free Lens and Reflex Reflector
Black ABS Plastic Housing with mounting screws and caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 100mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.47amps at 12 Volt and 0.27amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.03amps at 24 Volt Current Draw for Tail function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 42965
ADR 49/00 Rear Position Lamp specifications approved- CRN 42964
ADR 47/00 Reflector specifications approved- CRN 42966
Refer to ADR 13/00 for mounting instructions
Bulk Pack Qty: 1
5 Year Warranty
Spare Parts:-
J3B3B Black Triple Bracket
Specifications:
Colour: Red
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 190
Height (mm): 122
Depth (mm): 30
