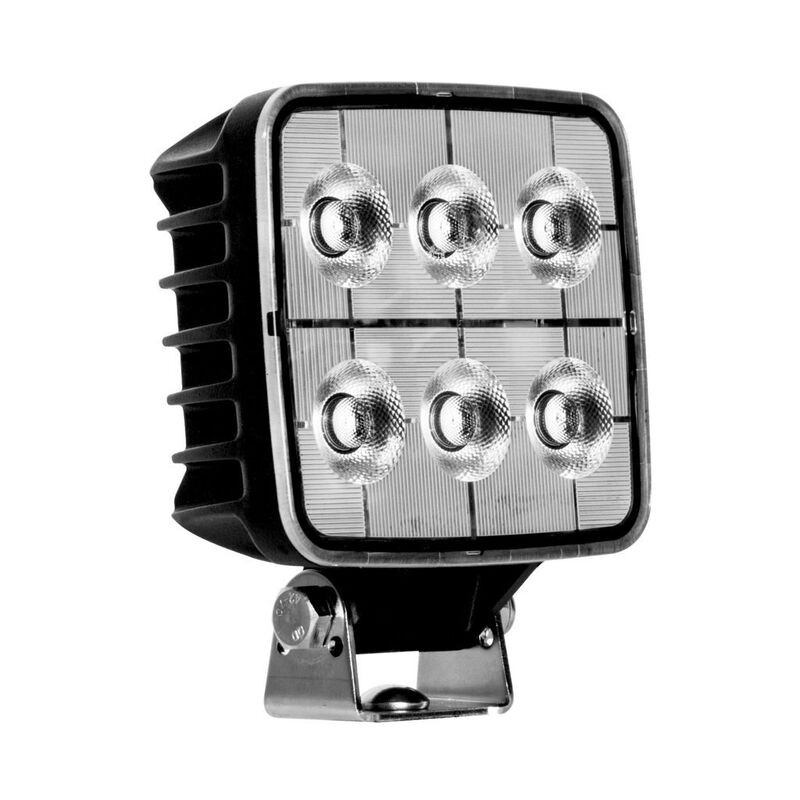

Led Square Worklamp Flood Beam 60 Deg 9-36V 24W 24 Leds Black
SKU:IWL2401F
Specifications:
Series: Other
Type: LED
Shape: Square
Voltage: Multivolt
Watts: Other
Beam Type: Flood
No. of LED: 24
Mount: Single Bolt
Width (mm): 107
Height (mm): 129
Depth (mm): 47
More info:
Ignite 4" Square LED Worklamp 9 - 36 Volt 24 Watt
60 degree Flood (Spread) Beam Pattern
24 x 1 Watt High Intensity Lumileds LED's
2,800 Raw Lumens, 2,380 Effective Lumens and 5,700K
1 Lux at 50m and 4,489cd Peak Beam Intensity
Current Draw: 1.8amp at 12 Volt and 0.8amp at 24 Volt
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Polycarbonate Lens
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy (ADC12) Housing with integrated Heat-Sink
Stainless Steel (SUS304) Single Bolt Mount Bracket and Hardware
In-Built 2 Pin Deutsch Plug in back of housing
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant up to 10G
50,000 Hours LED Lifespan
ECE R10, CE Approved and EMC Compliant
IP68 and IP69K Rating
Environment Temperature: -40 degC approx. to +60 degC
2 Year Warranty
Series: Other
Type: LED
Shape: Square
Voltage: Multivolt
Watts: Other
Beam Type: Flood
No. of LED: 24
Mount: Single Bolt
Width (mm): 107
Height (mm): 129
Depth (mm): 47
More info:
Ignite 4" Square LED Worklamp 9 - 36 Volt 24 Watt
60 degree Flood (Spread) Beam Pattern
24 x 1 Watt High Intensity Lumileds LED's
2,800 Raw Lumens, 2,380 Effective Lumens and 5,700K
1 Lux at 50m and 4,489cd Peak Beam Intensity
Current Draw: 1.8amp at 12 Volt and 0.8amp at 24 Volt
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Polycarbonate Lens
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy (ADC12) Housing with integrated Heat-Sink
Stainless Steel (SUS304) Single Bolt Mount Bracket and Hardware
In-Built 2 Pin Deutsch Plug in back of housing
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant up to 10G
50,000 Hours LED Lifespan
ECE R10, CE Approved and EMC Compliant
IP68 and IP69K Rating
Environment Temperature: -40 degC approx. to +60 degC
2 Year Warranty
(IWL2401F)
SKU | IWL2401F |
Barcode # | 9310754858057 |
Brand | Ignite |
Shipping Weight | 0.6000kg |
Shipping Width | 0.120m |
Shipping Height | 0.100m |
Shipping Length | 0.150m |
