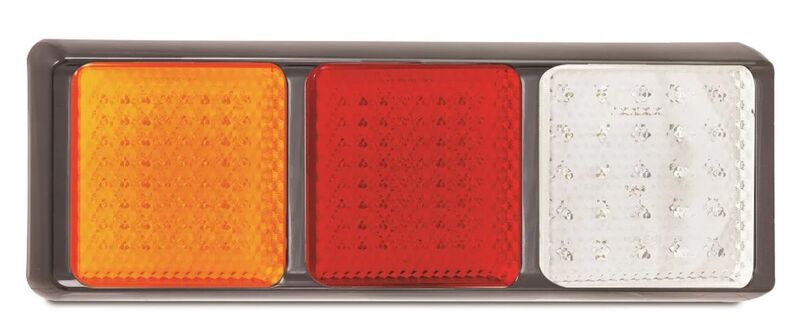

Led Stop/Tail/Indicator/Reverse Lamp 433Mm X 146Mm X 32Mm

125 Series LED Triple Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Includes 1 x Stop /Tail Lamp- 1 x Indicator Lamp and 1 x Reverse Lamp Module
Red- Amber and White Illumination
64 x High Intensity White LED's in each Stop / Tail- Indicator Modules and
25 x High Intensity White LED's in the Reverse Lamp Module
Red- Amber and Clear Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.42amps at 12 Volt and 0.26amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.06amps at 24 Volt Current Draw for Tail function
0.43amps at 12 Volt and 0.25amps at 24 Volt Current Draw for Indicator function
0.36amps at 12 Volt and 0.18amps at 24 Volt Current Draw for Reverse function
ADR 49/00 Rear Stop Lamp speci
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 435
Height (mm): 146
Depth (mm): 31
