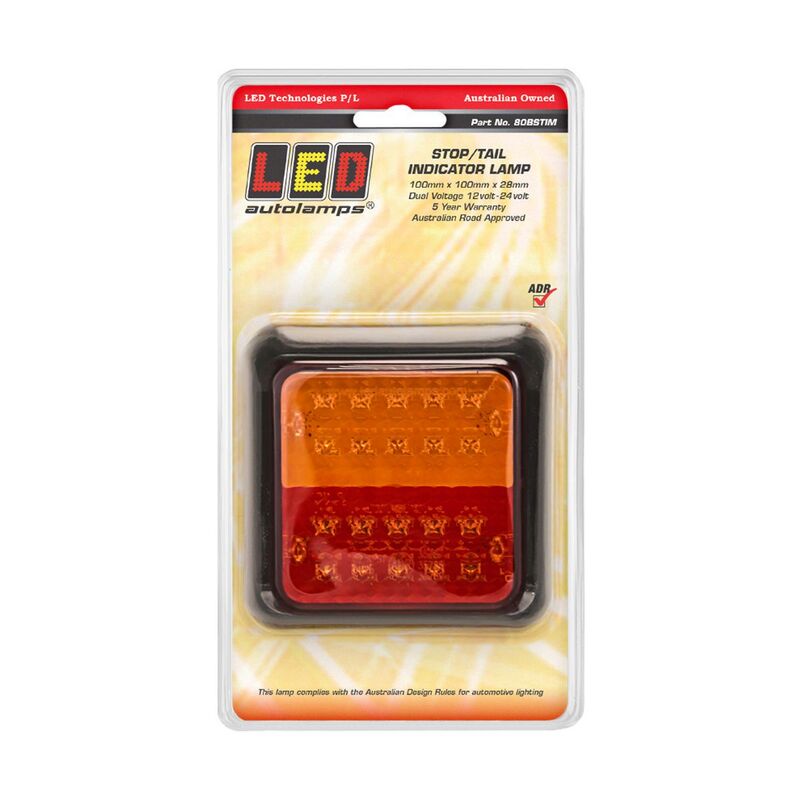

Led Stop/Tail/Indicator Lamp 12/24V pk 1

80 Series LED Combination Stop / Tail / Indicator Lamp 12/24 Volt
Red and Amber Illumination
12 x High Intensity Red LED's and 12 x High Intensity Amber LED's
Red and Amber Optical Hardened Acrylic Lens with unique Diamond lens pattern
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.33amps at 12 Volt and 0.25amps at 24 Volt Current Draw for Stop function
0.06amps at 12 Volt and 0.04amps at 24 Volt Current Draw for Tail function
0.31amps at 12 Volt and 0.22amps at 24 Volt Current Draw for Indicator function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 35788 and 35789
ADR 6/00 2A Rear Indicator Lamp specifications approved CRN 35787
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Specifications:
Type: LED
Shape: Square
Voltage: 12/24V
Mount: Surface
Width (mm): 100
Height (mm): 100
Depth (mm): 28
