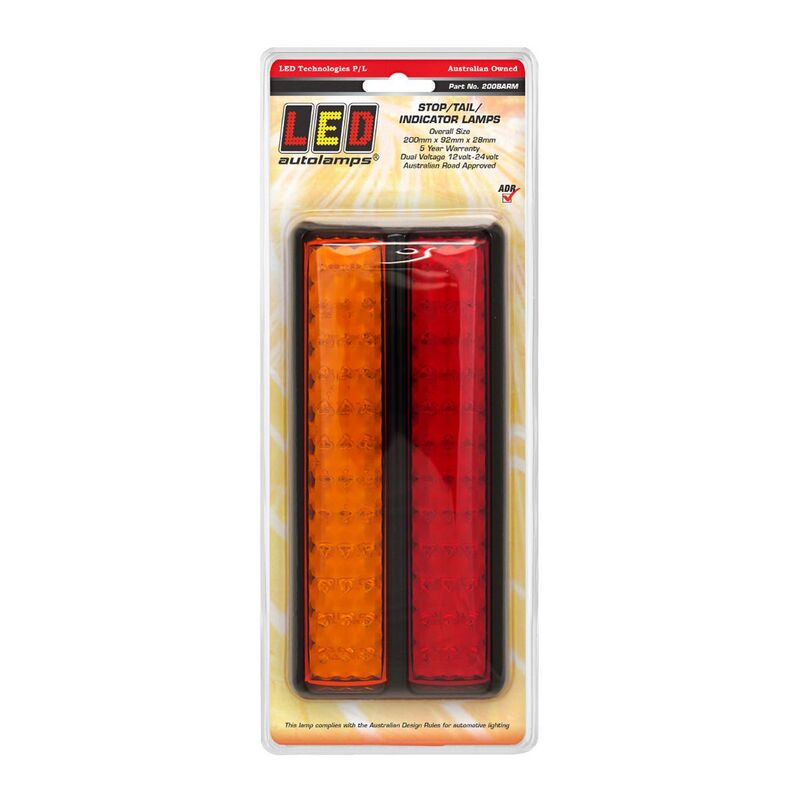

Led Stop/Tail/Indicator Lamp 12/24V Black Housing 40Cm Lead

200 Series LED Double Combination Stop / Tail / Indicator Lamp 12/24 Volt
Includes 1 x Stop /Tail Lamp and 1 x Indicator Lamp Module
Red and Amber Illumination
36 x High Intensity White LED's in each Stop / Tail and Indicator Lamp Modules
Red and Amber Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.32amps at 12 Volt and 0.18amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.04amps at 24 Volt Current Draw for Tail function
0.34amps at 12 Volt and 0.19amps at 24 Volt Current Draw for Indicator function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 35941
ADR 6/00 2A Rear Indicator Lamp specifications approved- CRN 35795
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Spare Part
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 200
Height (mm): 92
Depth (mm): 28
