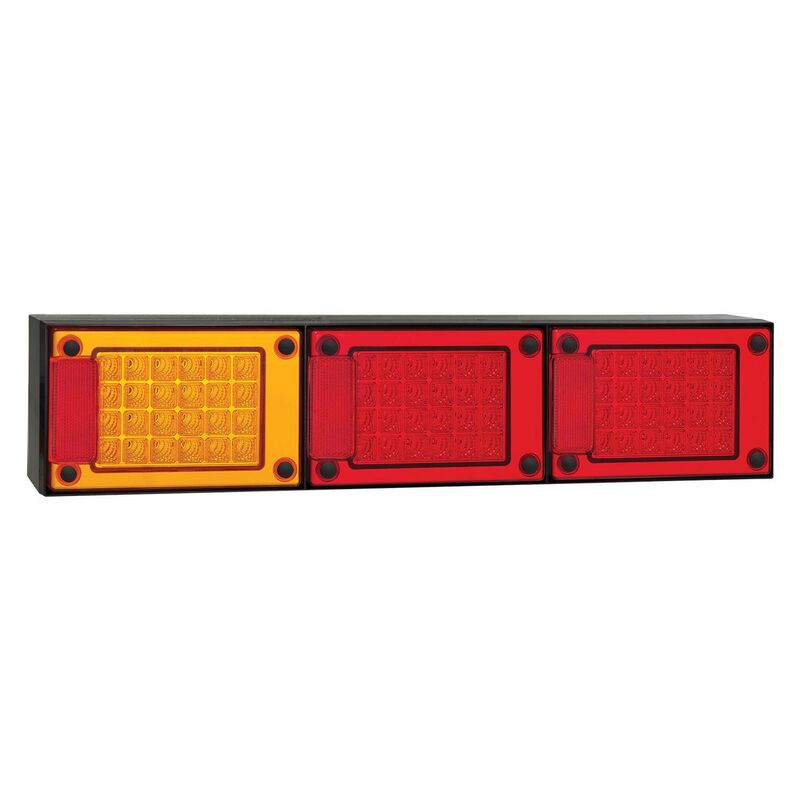

Led Stop/ Tail/ Indicator Lamp Assembly 12/24V Triple Jumbo Combination

Jumbo Series LED Double Combination Stop / Tail / Indicator Lamp 12/24 Volt
Includes 2 x Stop /Tail Lamps and 1 x Indicator Lamp Module
Red and Amber Illumination
24 x High Intensity White LED's in each Stop / Tail and Indicator Lamp Modules
Faceted Reflector with Red and Amber Hardened Acrylic pattern free Lens and Reflex Reflector
Black ABS Plastic Housing with mounting screws and caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 1.2m Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.47amps at 12 Volt and 0.27amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.03amps at 24 Volt Current Draw for Tail function
0.42amps at 12 Volt and 0.28amps at 24 Volt Current Draw for Indicator function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 42965
ADR 6/00 2A Rear Indicator Lamp specifications approved- CRN 42964
ADR 47/00 Reflector specifications approved- CRN 42966
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 595
Height (mm): 130
Depth (mm): 45
