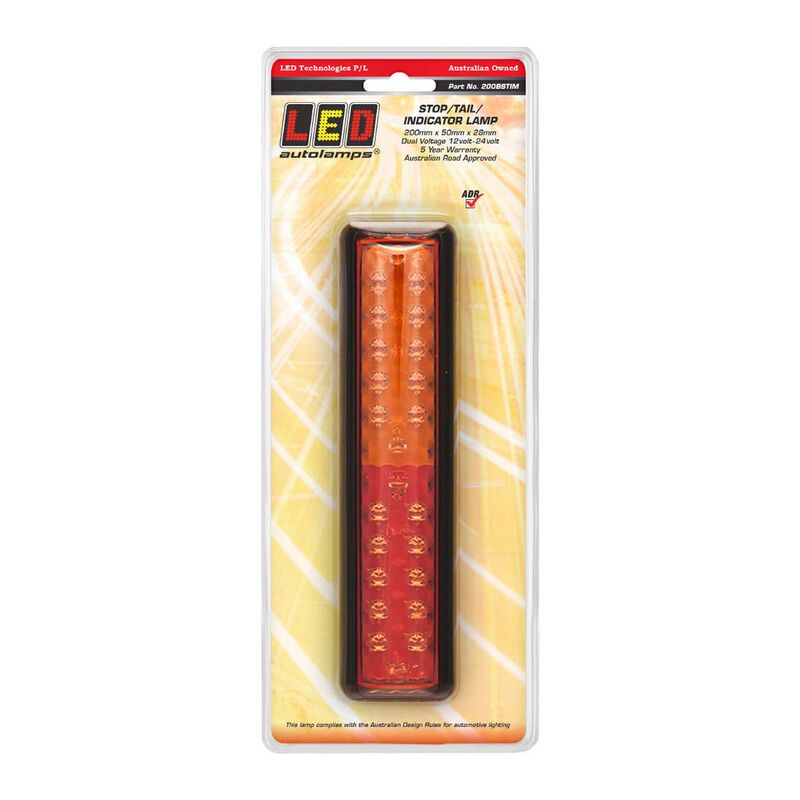

Lamp Stop Tail Indicator 12/24V Led Black Bracket Horizontal Mount

200 Series LED Combination Stop / Tail / Indicator Lamp 12/24 Volt
Red and Amber Illumination
12 x High Intensity Red LED's and 12 x High Intensity Amber LED's with Red and Amber PCB
Clear Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.29amps at 12 Volt and 0.16amps at 24 Volt Current Draw for Stop function
0.09amps at 12 Volt and 0.07amps at 24 Volt Current Draw for Tail function
0.19amps at 12 Volt and 0.07amps at 24 Volt Current Draw for Indicator function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 35785
ADR 49/00 Rear Tail Lamp specifications approved- CRN 35786
ADR 6/00 2A Rear Indicator Lamp specifications approved- CRN 35784
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 200
Height (mm): 50
Depth (mm): 28
