Led Stop/Tail/Indicator Light LED 12/24V

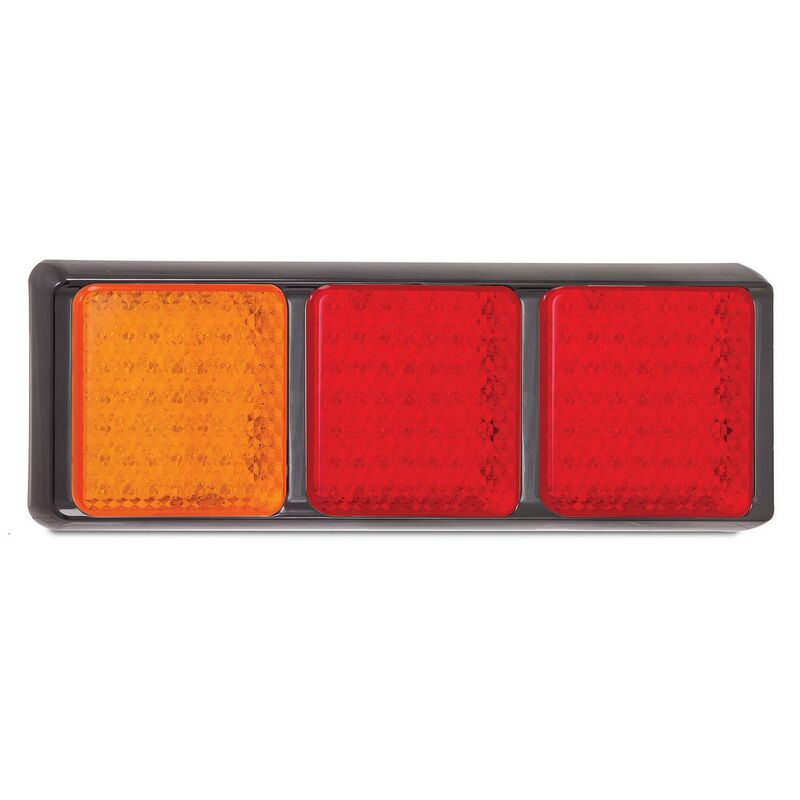

100 Series LED Triple Combination Stop / Tail / Indicator Lamp 12/24 Volt
Includes 1 x Stop /Tail Lamp and 1 x Indicator Lamp Module
Red and Amber Illumination
49 x High Intensity White LED's in each Stop / Tail and Indicator Lamp Modules
Red and Amber Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.38amps at 12 Volt and 0.24amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.07amps at 24 Volt Current Draw for Tail function
0.38amps at 12 Volt and 0.23amps at 24 Volt Current Draw for Indicator function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 33402
ADR 6/00 2A Rear Indicator Lamp specifications approved CRN 33156
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Spare Parts
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 350
Height (mm): 120
Depth (mm): 31
