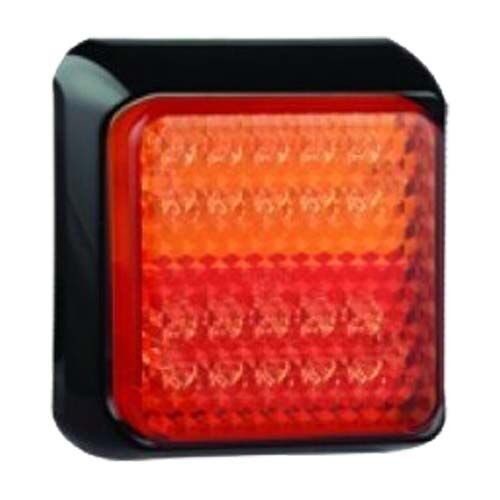

Led Stop/Tail/Indicator Lamp Assembly Black Bracket 40Cm Wire

100 Series LED Combination Stop / Tail / Indicator Lamp 12/24 Volt
Red and Amber Illumination
10 x High Intensity Red LED's and 10 x High Intensity Amber LED's with Red and Amber PCB
Clear Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.13amps at 12 Volt and 0.12amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.06amps at 24 Volt Current Draw for Tail function
0.12amps at 12 Volt and 0.07amps at 24 Volt Current Draw for Indicator function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 35781
ADR 6/00 2A Rear Indicator Lamp specifications approved- CRN 35782
Refer to ADR 13/00 for mounting instructions
Box Qty: 1
5 Year Warranty
Specifications:
Type: LED
Shape: Square
Voltage: 12/24V
Mount:Surface
Width (mm): 100
Height (mm): 100
Depth (mm): 22
