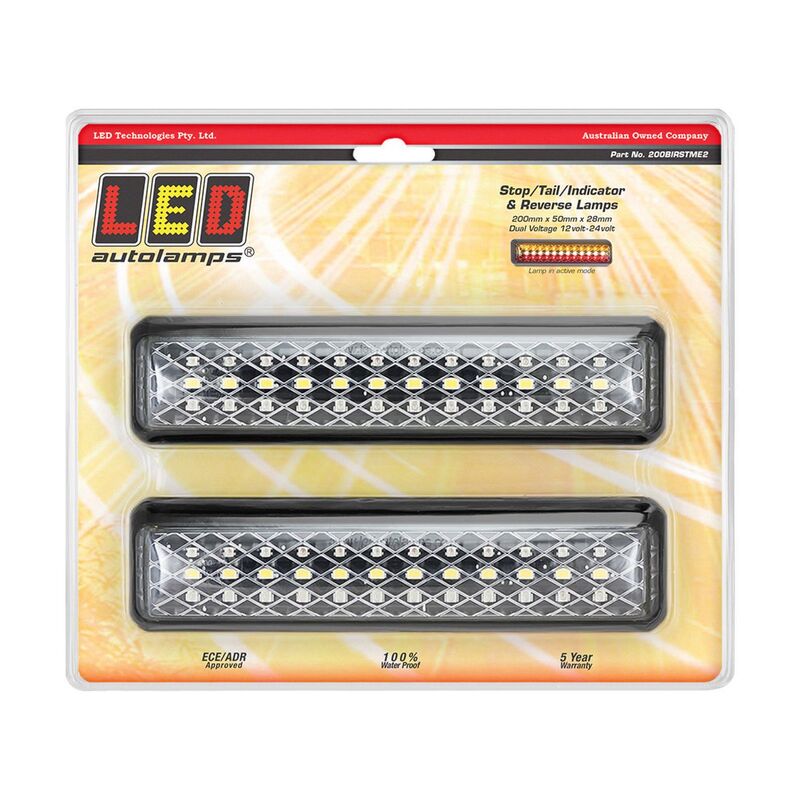

Led Stop/Tail/Indicator/Reverse Lamp 12/24V Black Housing 40Cm Wire

200 Series LED Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Red- Amber and White Illumination
12 x High Intensity Red LED's and 12 x High Intensity Amber LED's and 12 x High Intensity White
Clear Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.20amps at 12 Volt and 0.11amps at 24 Volt Current Draw for Stop function
0.02amps at 12 Volt and 0.02amps at 24 Volt Current Draw for Tail function
0.20amps at 12 Volt and 0.11amps at 24 Volt Current Draw for Indicator function
0.23amps at 12 Volt and 0.14amps at 24 Volt Current Draw for Reverse function
ADR 49/00 Rear Stop Lamp specifications approved
ADR 6/00 2A Rear Indicator Lamp specifications approved
ADR 1/00 Reverse Lamp specifications approved
Refer to ADR 13/00 for m
