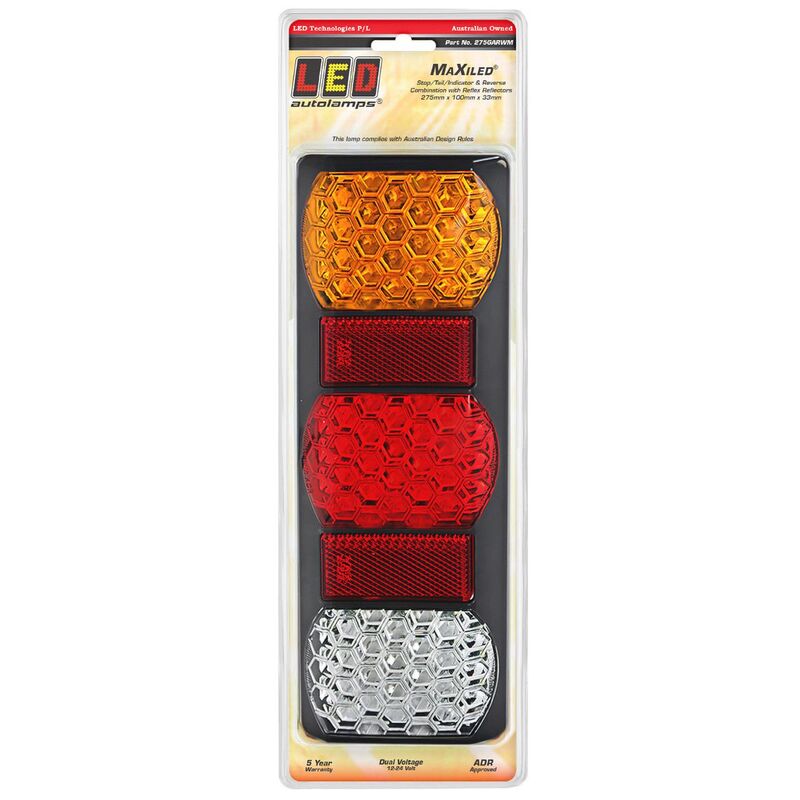

Led Stop/Tail/Indicator/Reverse Lamp 12/24V With Reflector Grey

275 Series LED Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Red, Amber and White Illumination
24 x High Intensity White LED's in each Stop / Tail Lamps, Indicator and Reverse Lamps
Red, Amber and Clear Optical Hardened Acrylic Lens with unique Hexagonal lens pattern and 2 x inbuilt Retro Reflectors
Dark Grey ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 200mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.23amps at 12 Volt and 0.12amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.04amps at 24 Volt Current Draw for Tail function
0.22amps at 12 Volt and 0.12amps at 24 Volt Current Draw for Indicator function
0.16amps at 12 Volt and 0.09amps at 24 Volt Current Draw for Reverse function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 43223
ADR 6/00 2A Rear Indicator Lamp specifications approved- CRN 432
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 275
Height (mm): 100
Depth (mm): 33
