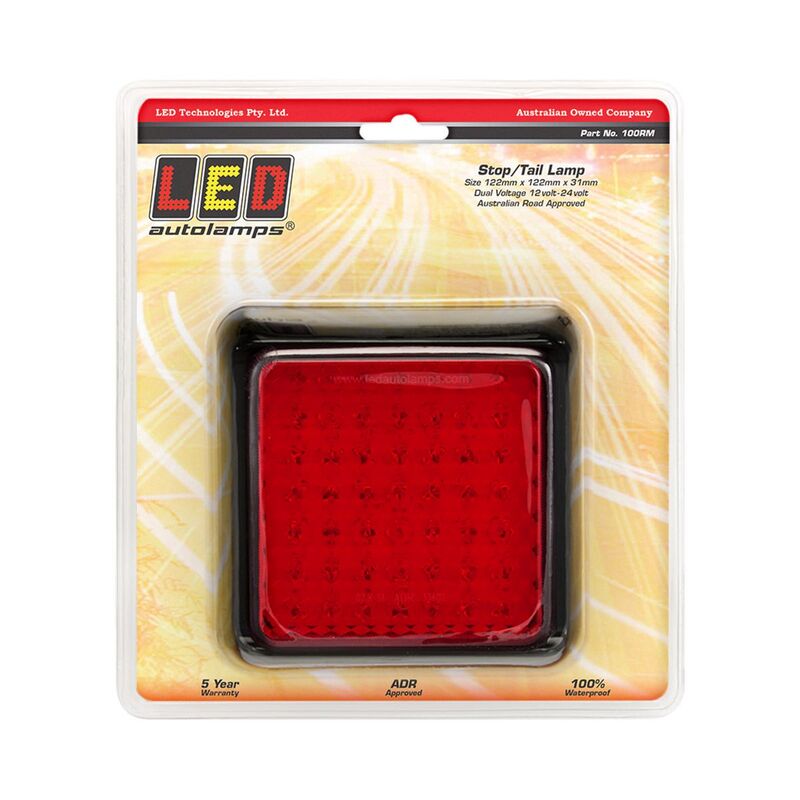

Led Stop/Tail Lamp 12/24V 122Mm X 122Mm Bracket 30Cm Wire

100 Series LED Stop / Tail Lamp 12/24 Volt
Red Illumination
49 x High Intensity White LED's
Red Optical Hardened Acrylic Lens
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.38amps at 12 Volt and 0.24amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.04amps at 24 Volt Current Draw for Tail function
ADR 49/00 Rear Position Lamp specifications approved- CRN 33402
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Spare Parts:
100B1B Black Single Bracket
100B1C Chrome Single Bracket
100B3BB Black Triple Bracket
100B3C Chrome Triple Bracket
Specifications:
Colour: Red
Type: LED
Shape: Square
Voltage: 12/24V
Mount: Surface
Width (mm): 122
Height (mm): 122
Depth (mm): 31
