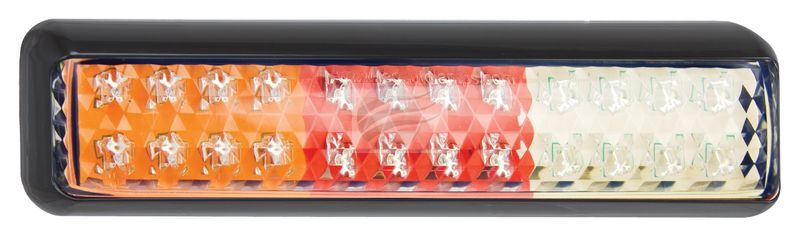

Led Stop/Tail/Indicator/Reverse Lamp 12/24V Black Housing 40Cm Wire

200 Series LED Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Red- Amber and White Illumination
8 x High Intensity Red LED's and 8 x High Intensity Amber LED's and 8 x High Intensity White
LED's with Red- Amber and White PCB
Clear Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitrySealed against Dust and Moisture
0.08amps at 12 Volt and 0.41amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.11amps at 24 Volt Current Draw for Tail function
0.08amps at 12 Volt and 0.40amps at 24 Volt Current Draw for Indicator function
0.08amps at 12 Volt and 0.28amps at 24 Volt Current Draw for Reverse function
ADR 49/00 Rear Stop Lamp specifications approved
ADR 6/00 2A Rear Indicator Lamp specifications approved
ADR 1/00 Reverse Lamp
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 200
Height (mm): 50
Depth (mm): 28.a
