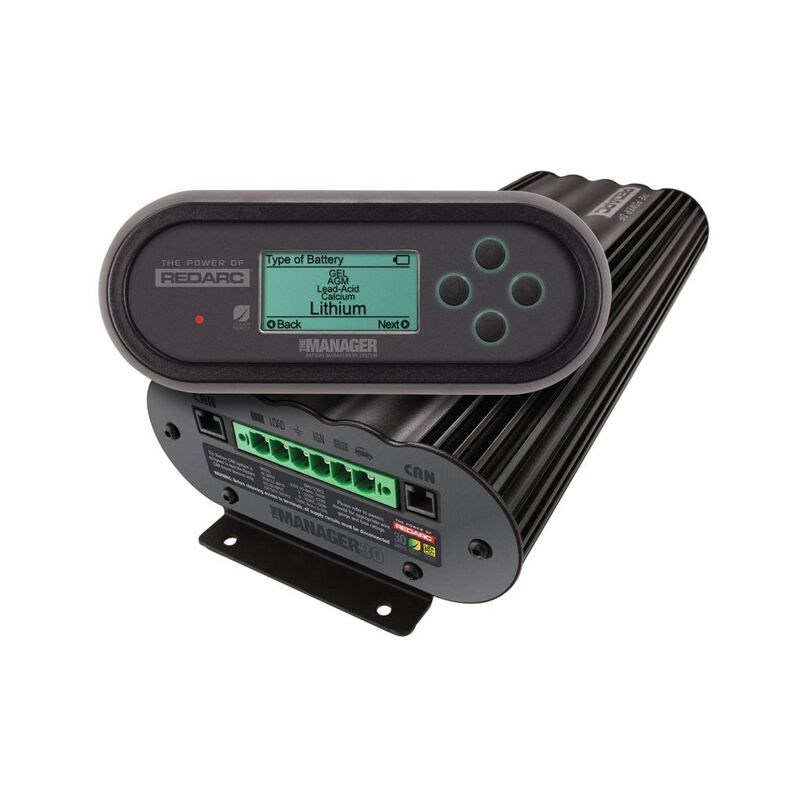

Manager30 S3 Battery Management System

The next generation Manager30 S3 model is the complete battery management system for charging auxiliary batteries used in recreational automotive and marine applications. The dual battery system incorporates AC, DC and solar inputs to achieve the best charge for an auxiliary battery.
Developed with ease of installation in mind, The Manager30 is compatible with all vehicles and alternator systems including variable voltage alternators.
Whether you’re charging Lead Acid, Gel, Calcium, AGM or Lithium Iron Phosphate batteries, The Manager30 represents a complete DC to DC charging and maintenance solution. If you’re charging one auxiliary battery or more, The Manager30 will ensure they’re always fully charged, providing peace of mind when battery charge provides the power source for the comforts of home whilst travelling around Australia.
The Manager30 operates like 6 separate products, it charges an auxiliary battery from the vehicle while on the move, it’s a 240 volt charger, a solar regulator, a battery isolator, a load disconnect controller, all with a remote battery monitor, making it market leading.
Specs:
Output System Voltage: 12VDC
Maximum Charging Voltage: 16.0V (note: Calcium setting in storage mode)
Output Current Rating (Cont.): 30A
Output Power: 520W
Input Fuse Rating: 50A
Output Fuse Rating: 40A
Warranty: 2 Years
Protection: Short Circuit, Surge, Reverse Polarity, Overload
Input (Operating) Voltage: 240VAC / 9 - 32VDC
Length (mm): 445
Width (mm): 185
Height (mm): 79
Weight (kg): 5.5
AC Mains Plug Type: AU, NZ, EU
Type Approval: CE
