Manual Sleeve puller set can remove cylinder sleeves from most truck, bus, tractor and other vehicle engines. They work on wet and dry sleeves and do not require removal of head studs.
Supplied with the following sleeve remover plates to suit: Fuso 3.5 tons, Fuso 15 tons, Fuso 330, Hino 750, Scania 310. Also can fit many other vehicle engines.

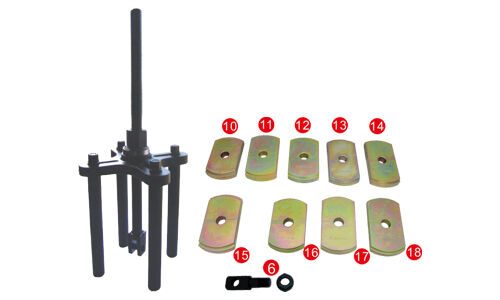

Manual Cylinder Sleeve Puller Set (Items Available Separately):
Item No.
Description
I.D.
O.D.
A1336-10
Sleeve Pulling Plate
119mm
130mm
A1336-11
Sleeve Pulling Plate
129mm
142mm
A1336-12
Sleeve Pulling Plate
126mm
138.5mm
A1336-13
Sleeve Pulling Plate
134mm
140mm
A1336-14
Sleeve Pulling Plate
136.5mm
147mm
A1336-15
Sleeve Pulling Plate
126mm
140mm
A1336-6
Pulling Plate Bolt Adaptor
Optional
A1336-16
Volvo (FL10)
120mm
125mm
A1336-17
Volvo (FM12)
130mm
135mm
A1336-18
DAF
129.5mm
138.5mm
(A1336)
SKU
A1336
Barcode #
9.31014E+12
Brand
T&E
Shipping Weight
5.0000kg
Shipping Width
0.300m
Shipping Height
0.100m
Shipping Length
0.350m
