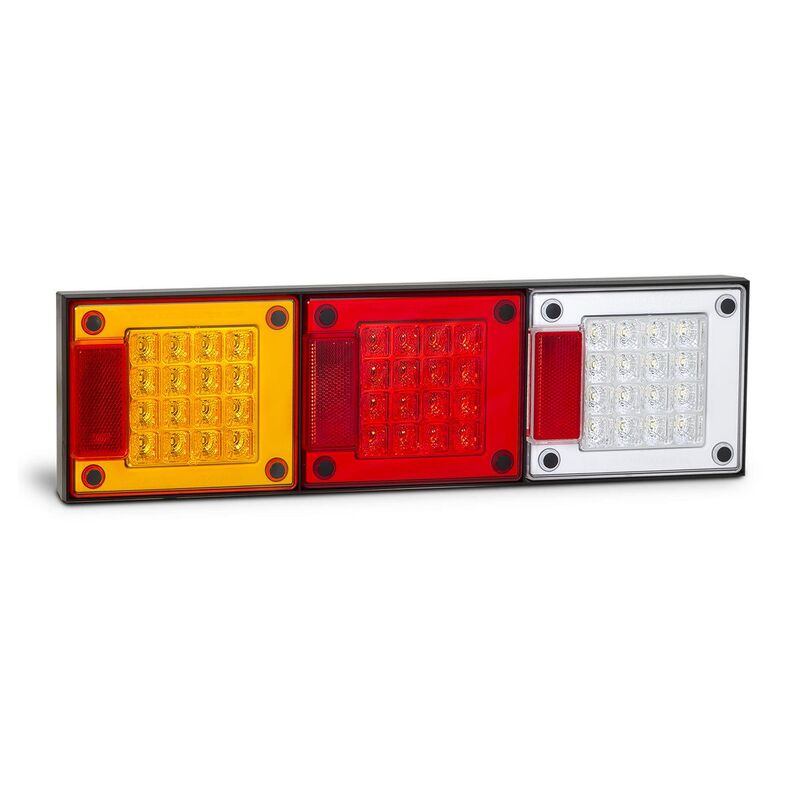

Led Medium Jumbo Stop/Tail/Indicator/Reverse Lamp 12/24V Single
SKU:460ARWM
460 Series LED Triple Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Medium sized Jumbo Lamps
Includes 1 x Stop /Tail Lamp- 1 x Indicator Lamp and 1 x Reverse Lamp Module
Red- Amber and White Illumination
16 x High Intensity White LED's in each Stop / Tail Lamps- Indicator and Reverse Lamps
Faceted Reflectors with Red- Amber and Clear Hardened Acrylic pattern free Lens and Reflex Reflector
Black ABS Plastic Housing with mounting screws and caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 1.2m Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.30amps at 12 Volt and 0.17amps at 24 Volt Current Draw for Stop function
0.02amps at 12 Volt and 0.04amps at 24 Volt Current Draw for Tail function
0.32amps at 12 Volt and 0.18amps at 24 Volt Current Draw for Indicator function
0.06amps at 12 Volt and 0.12amps at 24 Volt Current Draw for Reverse function
ECE 02-R1-S1 Rear Stop Lamp specif
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 460
Height (mm): 130
Depth (mm): 33
Medium sized Jumbo Lamps
Includes 1 x Stop /Tail Lamp- 1 x Indicator Lamp and 1 x Reverse Lamp Module
Red- Amber and White Illumination
16 x High Intensity White LED's in each Stop / Tail Lamps- Indicator and Reverse Lamps
Faceted Reflectors with Red- Amber and Clear Hardened Acrylic pattern free Lens and Reflex Reflector
Black ABS Plastic Housing with mounting screws and caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 1.2m Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.30amps at 12 Volt and 0.17amps at 24 Volt Current Draw for Stop function
0.02amps at 12 Volt and 0.04amps at 24 Volt Current Draw for Tail function
0.32amps at 12 Volt and 0.18amps at 24 Volt Current Draw for Indicator function
0.06amps at 12 Volt and 0.12amps at 24 Volt Current Draw for Reverse function
ECE 02-R1-S1 Rear Stop Lamp specif
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 460
Height (mm): 130
Depth (mm): 33
(460ARWM)
| SKU | 460ARWM |
| Barcode # | 9.33596E+12 |
| Brand | LED Auto Lamps |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.050m |
| Shipping Length | 0.500m |
