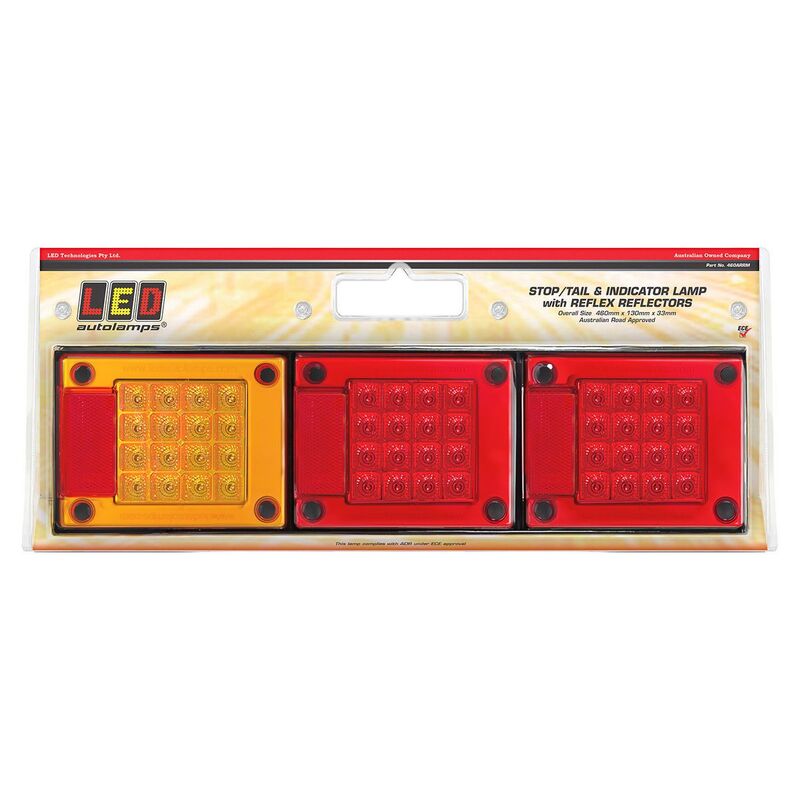

Medium Jumbo Led Stop/Tail/Indicator Lamp 12/24V Black Housing 1.2M Lead

460 Series LED Double Combination Stop / Tail / Indicator Lamp 12/24 Volt
Medium sized Jumbo Lamps
Includes 2 x Stop /Tail Lamps and 1 x Indicator Lamp Module
Red and Amber Illumination
16 x High Intensity White LED's in each Stop / Tail and Indicator Lamp Modules
Faceted Reflectors with Red and Amber Hardened Acrylic pattern free Lens and Reflex Reflector
Black ABS Plastic Housing with mounting screws and caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 1.2m Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.30amps at 12 Volt and 0.17amps at 24 Volt Current Draw for Stop function
0.02amps at 12 Volt and 0.04amps at 24 Volt Current Draw for Tail function
0.32amps at 12 Volt and 0.18amps at 24 Volt Current Draw for Indicator function
ECE 02-R1-S1 Rear Stop Lamp specifications approved- CRN 11293
ECE 01-2a Rear Indicator Lamp specifications approved- CRN 6205
ECE 02-1a Rear Reflector specification
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 460
Height (mm): 130
Depth (mm): 33
