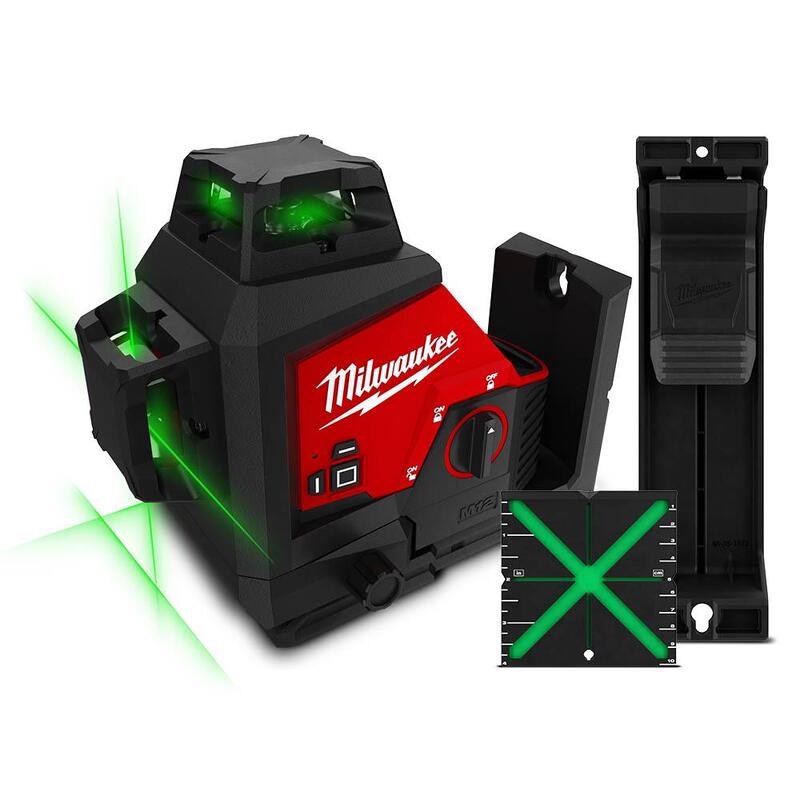

Milwaukee M123PLA-0C 12V Li-ion Cordless 38m 3 Plane Laser - Skin Only
SKU:186235
The M12 3 Plane Laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. Powered by our M12 batteries for ultimate productivity. The high-intensity green laser offers users superior visibility up to 38m for long-range applications. The integrated bracket features a micro control and pivots on a plumb point for easy and fast alignment. The M12 3 Plane Laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efficient setup in any environment.
Includes:
1 x Laser Track Clip with Quick Connect
1 x Laser Target
1 x Carry Case
Features:
15 hours of runtime on a single charge using using M12 REDLITHIUM-ION 3.0Ah battery
Visibility range of up to 38m
High intensity green beams provide up to 4x the brightness compared to red lasers
1m drop rating
IP 54 rating to protect the laser from harsh jobsite conditions
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4 degree self-levelling range and Pendulum Lock Mode to protect components during transport
330 degree rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
Fuel gauge on the top and side of the laser allows for fast checking of battery charge
Specifications:
Range with Detector: 50m
Working Range: 38m
Number of Beams: 3 Plane
Accuracy: ±3.18mm over 10m
Thread Mount: 1/4"-20, 5/8"-11
Locking Pendulum: Yes
Self-Leveling: ±4 degree Tilt
IP Rating: IP54
Impact Resistant: 1m
Dimensions (L x W x H): 198mm x 104mm x 165mm
Weight: 1.09 kg
Warranty:
3 Year Warranty covered by Milwaukee Australia
Includes:
1 x Laser Track Clip with Quick Connect
1 x Laser Target
1 x Carry Case
Features:
15 hours of runtime on a single charge using using M12 REDLITHIUM-ION 3.0Ah battery
Visibility range of up to 38m
High intensity green beams provide up to 4x the brightness compared to red lasers
1m drop rating
IP 54 rating to protect the laser from harsh jobsite conditions
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4 degree self-levelling range and Pendulum Lock Mode to protect components during transport
330 degree rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
Fuel gauge on the top and side of the laser allows for fast checking of battery charge
Specifications:
Range with Detector: 50m
Working Range: 38m
Number of Beams: 3 Plane
Accuracy: ±3.18mm over 10m
Thread Mount: 1/4"-20, 5/8"-11
Locking Pendulum: Yes
Self-Leveling: ±4 degree Tilt
IP Rating: IP54
Impact Resistant: 1m
Dimensions (L x W x H): 198mm x 104mm x 165mm
Weight: 1.09 kg
Warranty:
3 Year Warranty covered by Milwaukee Australia
(186235)
SKU | 186235 |
Barcode # | 9.31075E+12 |
Brand | Milwaukee |
Shipping Weight | 1.2000kg |
Shipping Width | 0.200m |
Shipping Height | 0.120m |
Shipping Length | 0.200m |
