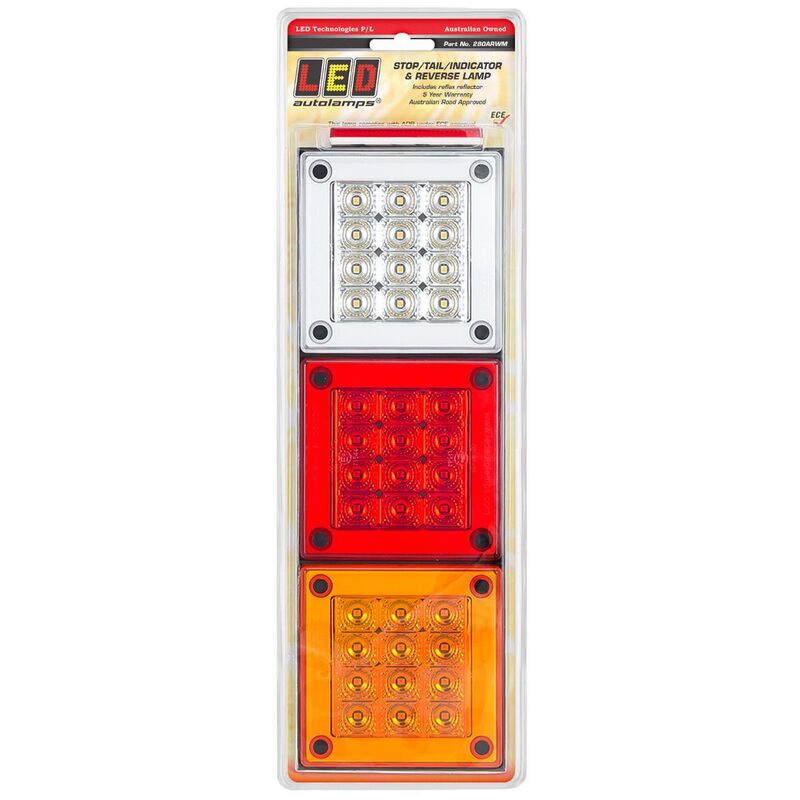

Mini Jumbo Led Stop/Tail/Indicator/Reverse Lamp 12/24V Black Housing 0.4M Lead

280 Series LED Triple Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Small sized Mini Jumbo Lamps
Includes 1 x Stop /Tail Lamp- 1 x Indicator Lamp and 1 x Reverse Lamp Modules
Red- Amber and White Illumination
12 x High Intensity White LED's in each Stop / Tail Lamps- Indicator and Reverse Lamps
Faceted Reflector with Red- Amber and Clear Hardened Acrylic pattern free Lens
Black ABS Plastic Housing with mounting screws caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 1.2m Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.15amps at 12 Volt and 0.11amps at 24 Volt Current Draw for Stop function
0.02amps at 12 Volt and 0.03amps at 24 Volt Current Draw for Tail function
0.14amps at 12 Volt and 0.11amps at 24 Volt Current Draw for Indicator function
0.17amps at 12 Volt and 0.13amps at 24 Volt Current Draw for Reverse function
ADR 49/00 Rear Stop Lamp specifications approved
ADR 6/00
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 282
Height (mm): 95
Depth (mm): 28
