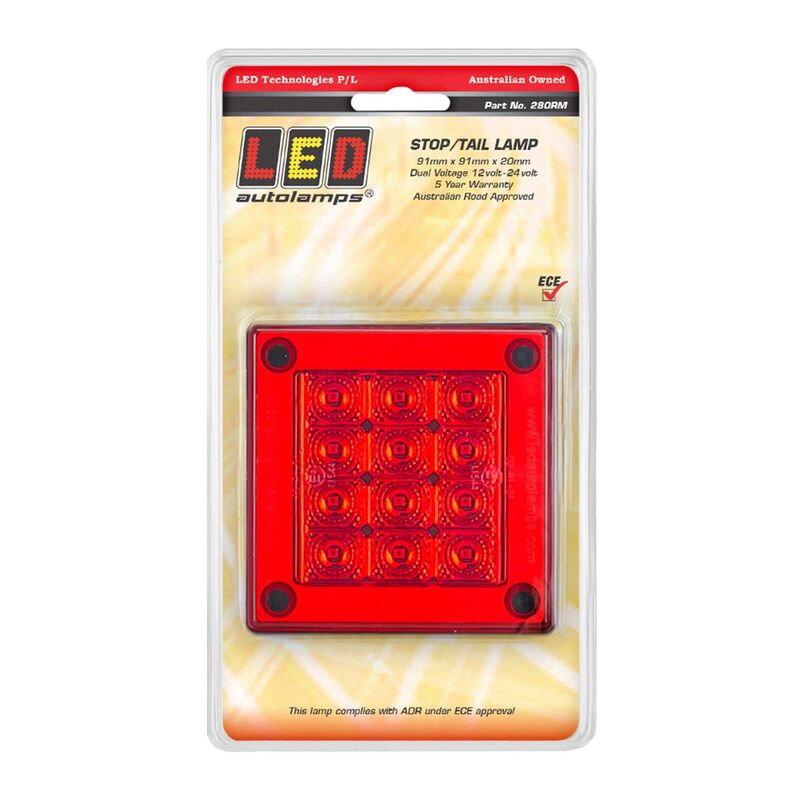

Mini Jumbo Led Stop/Tail Lamp 12/24V Surface Mount 1.2M Lead

280 Series LED Stop / Tail Lamp 12/24 Volt
Small sized Mini Jumbo Lamps- can be used as a replacement lamp in the
280 Series Combination Lamp Housing Assembly
Red Illumination
12 x High Intensity White LED's
Faceted Reflector with Red Hardened Acrylic pattern free Lens
Black ABS Plastic Housing with mounting screws caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 100mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.18amps at 12 Volt and 0.11amps at 24 Volt Current Draw for Stop function
0.02amps at 12 Volt and 0.03amps at 24 Volt Current Draw for Tail function
ADR 49/00 Rear Position Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Spare Parts:-
280B3B Black Triple Bracket
Specifications:
Colour: Red
Type: LED
Shape: Square
Voltage: 12/24V
Mount: Surface
Width (mm): 90
Height (mm): 90
Depth (mm): 28.a
