No.TT8164 - Ford Diesel/Petrol Timing Tool Set
SKU:TT8164
RRP $376.64
$282.10
SAVE $94.54 (25%)
Not Available In Store
Calculate Shipping
This is an extensive set designed for a wide range of both diesel and petrol engines on Ford. It's suitable for some engines in Mazda, Land Rover, Suzuki & Volvo. Set includes all the setting bars and locking pins that are required to keep the camshaft / injection pump shaft and the crankshaft in the specific position when changing the timing belt or during other engine repairs. Also to remove and replace the injection pump.
Application:
| Model: | |
|---|---|
| Ford: | CMAX (0712), Cougar(98-01), Courier(00-02), Fiesta(95-12), Focus(98-12), Fous CMAX(03-07), Fusion (02-12), Galaxy (06-12), Grand C-MAX (10-12), Kuga (08-12), Maverick (01-07), Mondeo (93-12), Puma (97-02), S-MAX (06-12), Tourneo Connect (02-12), Transit (06-11), Transit Connect (02-12) |
| Engine Code: | |
|---|---|
| 1.25 16v Belt: | DHA, DHB, DHC, DHD, DHE, DHF, DHG, F8JA, F8JB, FUJA, FUJB, M7JA, M7JB, SNJA,SNJB, STJA, STJB |
| 1.4 16v Belt: | ASDA, ASDB, FHA, FHB, FHD, FHF, FXDA, FXDB, FXDC, FXDD, FXJA, FXJB, FXJC, SPJA, SPJC, RTJA, RTJB, UTJA |
| 1.4D TDCi Belt: | F6JA, F6JB, F6JC, F6JD |
| 1.6 16v Belt: | FYDA, FYDB, FYDC, FYDD, FYDH, FYJA, FYJB, FYJC, HWDA, HWDB, L1F, L1J, L1L, L1N, L1Q, L1T, L1V, L1W, SHDA, SHDB, SHDC |
| 1.6 Ti-VCT Belt: | HXJA, HXJB, HXDA, IQDA, IQDB, PNBA, PNDA, RHBA, SIDA |
| 1.6 16v Ecoboost Belt: | JQDA, JQDB, JTDA, JTDB |
| 1.6D TDCi Belt: | G8DA, G8DB, G8DD, GPDA, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, TZJA |
| 1.6D TDCi Econetic Belt: | HHJD, G8DD, GPDA |
| 1.8 16v Belt: | EYDB, EYDC, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYPA, EYPC, RKA, RKB, RKF, RKH, RKJ, RKK, EYDL |
| 1.8 16v Chain: | CDBB, CGBA, CGBB, CHBA, CHBB, CSDA, CSDB, Q7DA, QQDA, QQDB, QQDC |
| 1.8D TDCi Belt: | BHPA, F9DA, F9DB, FFBA, FFDA, FFWA, HCPA, HCPB, KHBA, KKDA, KKDB, P7PA, P9PA,P9PB, QYBA, QYWA, R2PA, R3PA, RWPA, RWPC, TYWA |
| 1.8D TDDi Belt: | BHDA, BHDB, C9DA, C9DB, C9DC, BHPA |
| 1.8D TCi Belt: | RFN 1.8D Turbo Belt: C9DC, RTN, RTQ, RTP |
| 2.0 16v Belt: | ALDA, EDBA, EDBB, EDBC, EDBD, EDDB, EDDC, EDDD, EDDF, HMDA, NGA, NGB, NGC, NGD, YF |
| 2.0 16v Chain: | AOBA, AOBC, AODA, AODB, AODE, AOWA, AOWB, CJBA, CJBB, N4JB, SYDA, TBBA, TBBB, TBWA, TBWB |
| 2.0D TDCi Belt: | AZBA, AZBC, AZWA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG, IXDA, KLBA, LPBA, QXBA, QXBB, QXWA, QXWB, TXBA, TXDA, TXDB, TXWA, TYBA, TYDA, TYWA, UFBA, UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA |
| 2.2D TDCi Belt: | KNBA, Q4BA |
| 2.3 16v Chain: | GZFA, GZFB, GZFC, SEBA, SEWA, GZ |

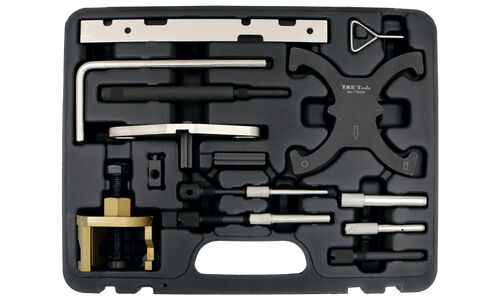

Contents:
| Item | OEM | Description |
|---|---|---|
| A | 303-732 (21-260) | Crankshaft/HP Pump Locking Pin (2 per kit) |
| B | 303-620 (21-163) | Crankshaft Location Pin |
| C | 303-507 (21-210) | Crankshaft Location Pin |
| D | 303-193 (21-104) | Crankshaft Location Pin |
| E | 303-393A (21-168) | Flywheel Locking Tool Base Plate |
| F | 303-651 (21-229) | Camshaft Sprocket Remover |
| G | 303-376 (21-162B) | Camshaft Setting Plate |
| H | 303-734 (21-262) | Flywheel Locking Pin |
| I | 303-1054 | Tensioner Locking Pin |
| J | 303-748 | Crankshaft Location Pin |
| K | 303-1097 | VCT Setting Plate |
| L | 303-1059 | Flywheel Locking Pin |
| M | 303-735 (21-263) | Camshaft Locking Pin |
(TT8164)
| SKU | TT8164 |
| Barcode # | 9310135718596 |
| Brand | T&E |
| Shipping Weight | 6.0000kg |
| Shipping Width | 0.350m |
| Shipping Height | 0.100m |
| Shipping Length | 0.350m |
