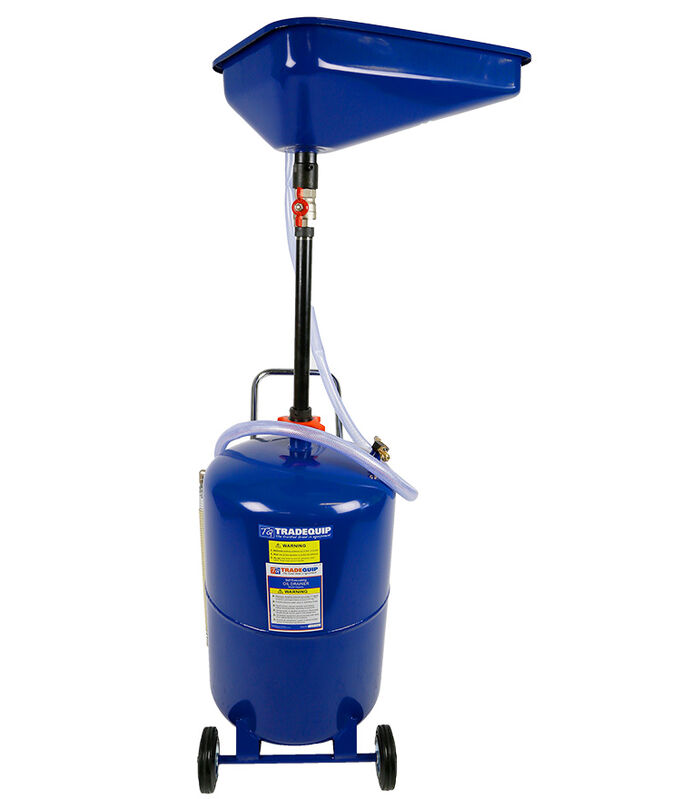

Oil Drainer Self Evacuating 65 Litre

TradeQuip "Made for the Trade" mobile waste oil drainers are designed to collect, store and carry waste oil and coolant from the service bay to bulk waste oil storage. Practical design including oversize drain bowls, sight gauges and integrated drain hose minimise the risk of operator exposure and spillage. Reservoirs are available in a range of convenient sizes and equipped for quick emptying with low pressure air. This 65Litre gravity fed waste portable oil drainer is fitted with a long 2m x 25.4mm discharge hose and has a 18 litre steel telescopic collection pan with an easy to read oil reservoir level indicator. The heavy duty castors make it easy to manoeuvre around the workshop via the chrome plated pull-along handle and discharge is by low air pressure care of the safety relief valve. (Previous models include product code/s; BOD1906, 1907T)
Note: If the workshop compressor supplies air pressure in excess of 0.5 Bar, an inline air regulator must be used to maintain air pressure at 0.5 Bar.
Features:
Collects, transfers and evacuates used engine oils, transmission fluids, power steering fluids etc
Top quality heavy-gauge steel collection tank
Telescopic drain pan adjusts to optimal working height
Offset drain bowl eliminates the need to reposition the tank, reducing the chance of spillage
Tank oil level indicator sight gauge prevents overfill
Air pressure relief valve prevents over-pressurisation
Sturdy rubber front wheels and ball bearing-mounted rear castors provide stability and easy maneuverability
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish
Painted finish is oil, grease and dirt-resistant for easy cleanup
Oil, heat, ozone and abrasion resistant drain hose
Easy to clean chrome handle
Not for use with corrosive or flammable fluids
Specifications:
Tank Capacity: 65 Litres
Drain Pan Capacity: 18 Litres
Drain Pan Catchment Opening: 500(L) x 300(W)mm
Maximum Telescopic Height: 1650mm
Minimum Height: 1080mm
Air Inlet: 1/4"
Working Pressure: 0.5 - 0.8 bar (7-11.6psi)
Ball Bearing Castor Wheels for easy manoeuvrability
Dimensions: 1650(H) x 600(L) x 390(W)mm
Nett Weight: 23kg
Carton: 750 x 425 x 540mm
Gross Weight: 25kg
