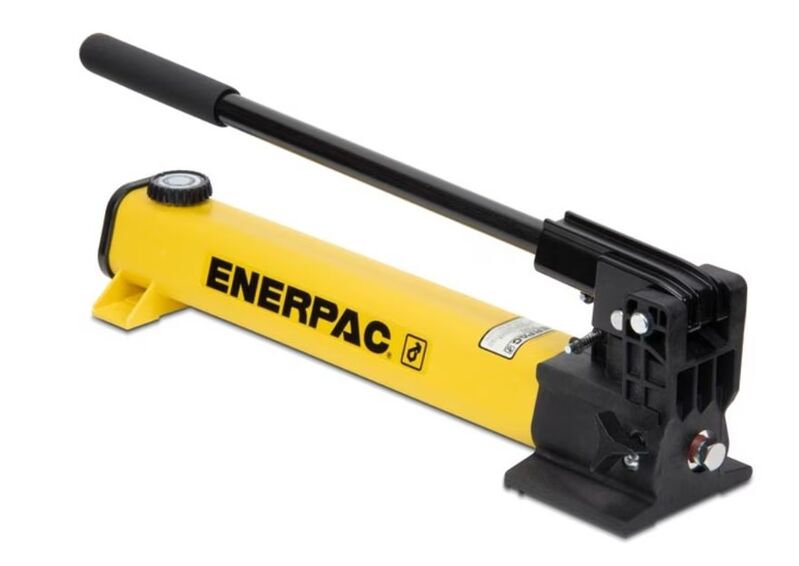

P392 Lightweight Hydraulic Hand Pump Cylinder

Enerpac lightweight hydraulic hand pumps are a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. Each model is rated up to 10,000 psi (700 bar).
Specifications:
Maximum Operating Pressure (psi): 10,000
Pressure Rating (psi) 1st Stage: 200
Pressure Rating (psi) 2nd Stage: 10,000
Cylinder Compatability: Single-acting
Pump Type: Two Speed
Reservoir Capacity (in3): 55
Usable Oil Capacity (in3): 55
Maximum Flow at Rated Pressure: .151 in3/stroke
Oil Displacement per Stroke (in3) 1st Stage: 0.687
Oil Displacement per Stroke (in3) 2nd Stage: 0.151
Maximum Handle Effort (lbs): 93
Piston Stroke (in): 1
Valve Operation: Manual
Power Source: Manual
Weight (lbs): 9
