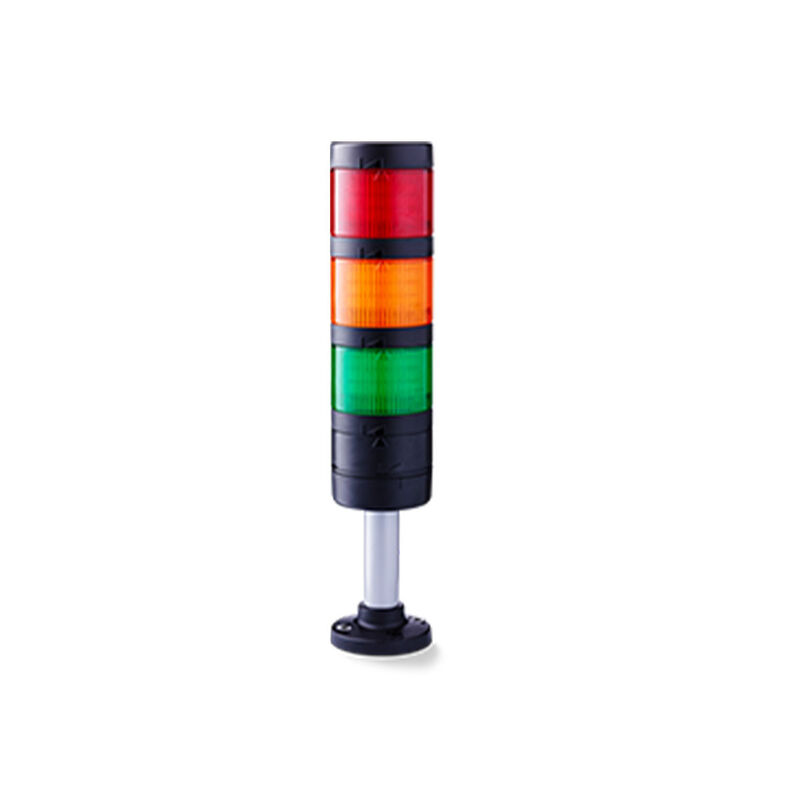

PC7 Series LED Signaltower 24VAC/DC, Steady LED: Red/Amber/Green, 100 mm Aluminium Tube Base

MODUL-PERFECT 70 MODULAR SIGNAL TOWER dia 70MM
Up to 6 times brighter than comparable signal towers
7 positions provide maximum flexibility
Two visual appearances available with diffuser film
Even brighter top light module with hemispherical signalling effect for classic AC/DC and IO-Link applications
Innovative MP3/voice output module for playing back audio formats
Patented, cost-effective M12 bases
Vertical mounting with angle (XWR, WZC) or PC7MV base possible
Technical Data:
Housing dia 70 mm, Polycarbonate black
Lens Polycarbonate, amber, red, clear, blue, green,
yellow or magenta
Leakage current: 0,003 A
Beacon type:
LED steady beacon, LED flashing beacon, LED strobe beacon or LED multi strobe beacon
Light source LEDs
Tone see tone table
Volume: 100-105 dB (depending on module)
Duty cycle: 100 %
Service life Light source: LED 100,000 hours
Number of possible modules max.: 7
Operating temperature: -30 degC / +70 degC
Degree of protection IP: 66/ IP67 & UL Type 4/4x/13
Impact resistance: IK08
Weight (modules): 48-166 g
