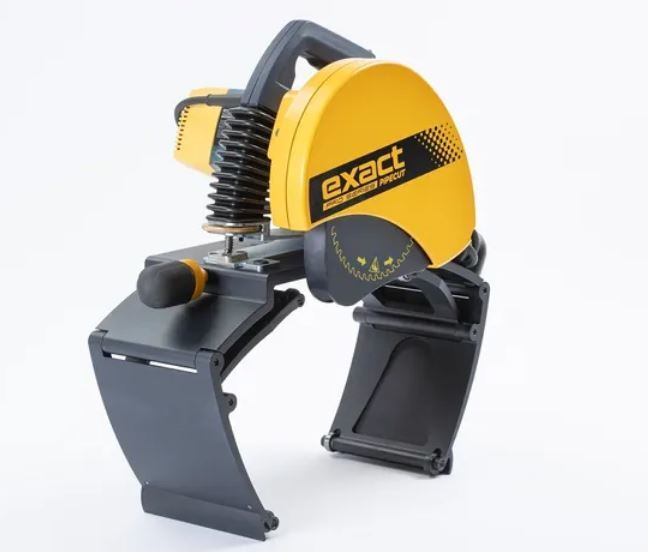

PlumBOSS exactCUT 360PRO PipeCut & Bevel- 75-360mm

PEC360 Pro CUT & BEVEL is a groundbreaking new product for cutting and beveling water & sewer pipelines in one process. With the renewed cutting depth adjustment and the best diamond disc on the market, this machine cuts and bevels pipes in one process. You can easily choose the bevel length and depth with the machine’s adjustments. You can even adjust the bevel depth during the cutting process. The machine is extremely easy and safe to use, the patented gripping unit ensures firm attachment to the pipe and makes the use of machine convenient. The machine is portable and can be used with a blade guard (separately orderable product) featured with a vacuum port (when cutting cast iron with concrete layer and plastics) to easily vacuum all the small dust/chips and take the user-friendliness to the next level.
Voltage / Power 230V / 2500W
Voltage / Current 110V, 120V / 15A
No-Load speed I=1900 r/min, II=2885 r/min
Blade diameter 165mm (6.50 inch)
Mounting bore 62mm (2.44 inch)
Weight 17.5 kg (38,6 lbs)
Range of use 75mm - 360mm (3 - 14 inch)
Max. pipe wall The same as in model PipeCut 360 Pro Series
Electronical unit Blade speed preselection, automatic fuse, soft start, torque control
Speed preselection I = Stainless steel II = Cut+Bevel function and all other materials
Loading capacity of supports 465 kg, 1025 lb (3 supports)
Pipe dia (OD) 75mm - 360mm (3 - 14 inch)
Suitable for the following Cut+Bevel pipe materials Cast iron and plastics max. bevel 14 mm
Suitable for cutting other pipe materials as per model PipeCut 360 Pro Series with alternative blade Steel, copper, stainless steel, acid-resistant steel, multi-layered materials
Kit Includes:
PEC360 Pro Series Cutting System
Pipe Bag
Pipe Support 360 Double and 2x 360 Single and tool for changing blade in the bag.
Operating instructions
Hex socket key 5 mm and 2 mm fitted to the machine
TCT 165 blade and specific blade guard for it
Diamond Cut Bevel disc 165 mm and specific blade guard for it
