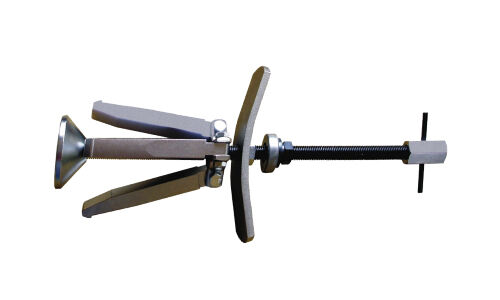

This puller features adjustable jaws to fit cylinder sleeves 3" to 6.1/2" (75 to 165mm) Cone adjustment positions the puller jaws and they are locked into place when the locking bar is tightened.
To aid in breaking "frozen" sleeves loose, the adjustable bridge is positioned on the cylinder block and the bearing-mounted forcing nut is tightened to break the seal. Finally sleeves are removed with the use of the 5lb. 5/8" UNF threaded slide hammer.
Length: 18" (457mm).
(2-1205)
SKU
2-1205
Barcode #
9.31014E+12
Brand
T&E
Shipping Weight
5.0000kg
Shipping Width
0.150m
Shipping Height
0.100m
Shipping Length
0.500m
