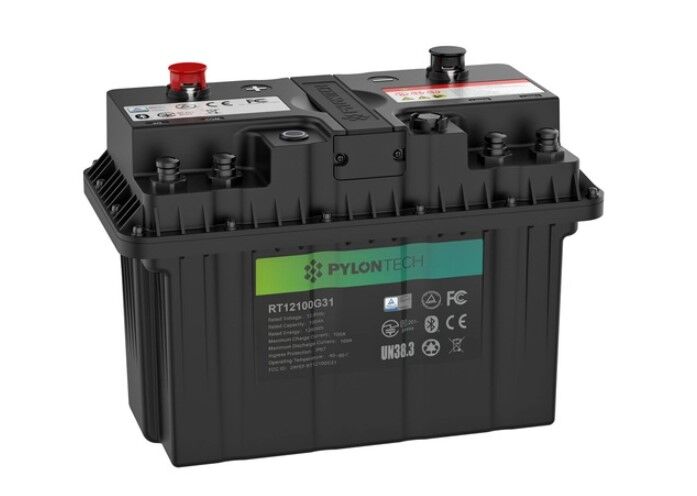

Pylontech 12v 100amp Lithium Battery BT
SKU:RT12100G31
RT12100 12.8V 100Ah 1280Wh Lithium Iron Phosphate (LiFePO4) IP67 Battery with RS485 / CAN / Bluetooth and Dry Contact Communications. Connect up to 4 in series and 4 in parallel for 48V 400Ah.
Specifications:
Nominal Voltage: 12.8V
Rated Capacity: 100Ah
Capacity: 1280Wh
Dimensions: 325mm x 173.5mm x 226mm
Gross Weight: 13KG
IP Rating: IP67
Terminal Connection: M8 Bolt
Voltage Range: 10.8 - 14.4V DC
Charge Voltage: 14-14.4V DC
Continuous Charge Current: 50A
Continuous Discharge Current: 100A
Peak Current: 200A at 30 Seconds
Working Temperature: -20 degC - 60 degC
Storage Temperature: -40 degC - 60 degCbr>Humidity Range: 5 percent - 95 percent (without condensing
Altitude: below 4000 Metres
Cycle life: Up to 6000 cycles
Parallel Capable: Up to 4 in Parallel
Series Capable: Up to 4 in Series
Warranty: 3 Years
RS485: 115200bps
CAN: 500kbps
Bluetooth: BLE5.0
Dry Contactor: 2x Input & 2x Output
Specifications:
Nominal Voltage: 12.8V
Rated Capacity: 100Ah
Capacity: 1280Wh
Dimensions: 325mm x 173.5mm x 226mm
Gross Weight: 13KG
IP Rating: IP67
Terminal Connection: M8 Bolt
Voltage Range: 10.8 - 14.4V DC
Charge Voltage: 14-14.4V DC
Continuous Charge Current: 50A
Continuous Discharge Current: 100A
Peak Current: 200A at 30 Seconds
Working Temperature: -20 degC - 60 degC
Storage Temperature: -40 degC - 60 degCbr>Humidity Range: 5 percent - 95 percent (without condensing
Altitude: below 4000 Metres
Cycle life: Up to 6000 cycles
Parallel Capable: Up to 4 in Parallel
Series Capable: Up to 4 in Series
Warranty: 3 Years
RS485: 115200bps
CAN: 500kbps
Bluetooth: BLE5.0
Dry Contactor: 2x Input & 2x Output
(RT12100G31)
SKU | RT12100G31 |
Barcode # | 9310754861361 |
Brand | Pylontech |
Shipping Weight | 14.0000kg |
Shipping Width | 0.230m |
Shipping Height | 0.180m |
Shipping Length | 0.330m |
