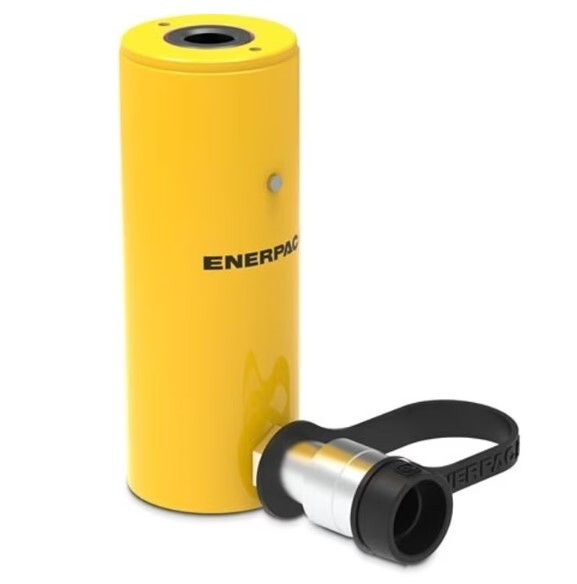

RCH123 Hydraulic Cylinder
SKU:RCH123
RRP $3,158.75
$2,211.11
SAVE $947.64 (30%)
Not Available In Store
Calculate Shipping
RCH-Series Hollow Plunger Cylinders offer versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull or lifting applications.?
Specifications:
Maximum Operating Pressure (bar): 700
Capacity Class (tonnage): 12
Maximum Cylinder Capacity Advance (kN): 125
Stroke (mm): 76
Collapsed Height A (mm): 184
Extended Height B (mm): 260
Return Type: Single-Acting, Spring Return
Plunger Type: Hollow
Material: Steel
Cylinder Effective Area Advance (cm2): 17,9
Oil Capacity Advance (cm3): 136
Surface Treatment: Paint
Coupler: CR400 Coupler
Weight (kg): 4,4
Specifications:
Maximum Operating Pressure (bar): 700
Capacity Class (tonnage): 12
Maximum Cylinder Capacity Advance (kN): 125
Stroke (mm): 76
Collapsed Height A (mm): 184
Extended Height B (mm): 260
Return Type: Single-Acting, Spring Return
Plunger Type: Hollow
Material: Steel
Cylinder Effective Area Advance (cm2): 17,9
Oil Capacity Advance (cm3): 136
Surface Treatment: Paint
Coupler: CR400 Coupler
Weight (kg): 4,4
(RCH123)
| SKU | RCH123 |
| Barcode # | 9310754895939 |
| Brand | Enerpac |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.400m |
