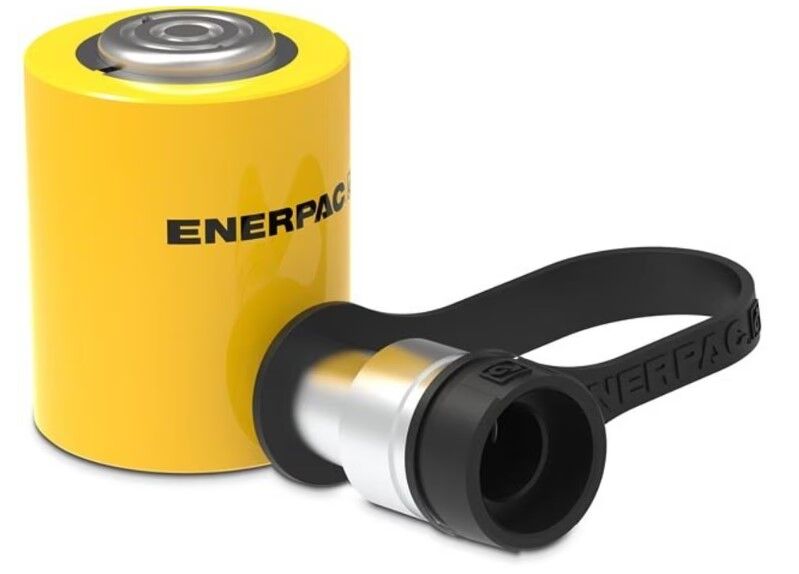

RCS101 Hydraulic Cylinder

RCS-Series Low Profile Hydraulic Cylinders provide superior durability, performance longevity, safety, and quality in a compact and convenient footprint. These low profile hydraulic jacks are the perfect choice for general lifting and production applications where space is limited or constrained. A low collapsed height, short stroke, and solid construction enables safety and stability in both vertical and horizontal orientations.
Specifications:
Maximum Operating Pressure (bar): 700
Capacity Class (tonnage): 10
Maximum Cylinder Capacity Advance (kN): 101
Stroke (mm): 38
Collapsed Height A (mm): 88
Extended Height B (mm): 126
Return Type: Single-Acting, Spring Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance (cm2):14,5
Oil Capacity Advance (cm3): 55
Surface Treatment: Paint
Coupler: CR400 Coupler
Weight (kg): 2,7
