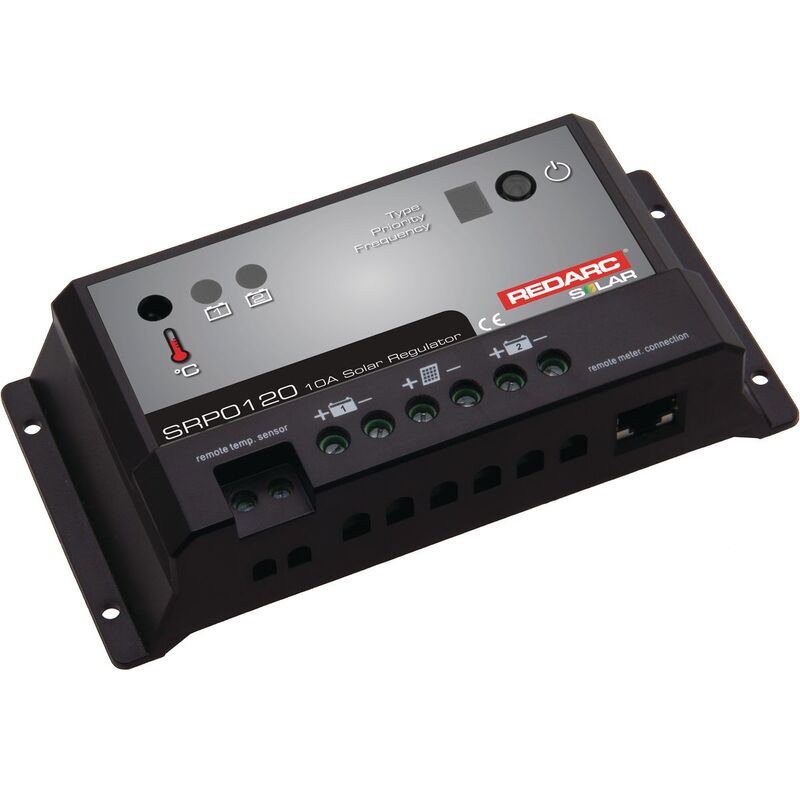

Redarc Solar Regulator 12/24V 10A

REDARC solar regulators ensure that the power supplied by your solar panels is at the right voltage to charge your house or auxiliary batteries.
Our regulators are suitable for charging up to two separate battery banks and come in both 10A and 20A models.
Features:
Multi-stage charging
Dual battery outputs
LED indication
Remote monitor (optional)
Remote temperature sensor (optional)
2 year warranty
Specifications:
Input (Operating) Voltage: 12V/24V
Output System Voltage: 12V/24VDC
Maximum Charging Voltage: 14.8V/29.6V
Output Current Rating (Cont.): 10A
Warranty: 2 Years
Standby Current Draw: 4mA
Length (mm): 153
Width (mm): 76
Height (mm): 37
Weight (kg): 0.24
