Relay Timer Delayed Off 12/24V Temp Output At Turn On Adjstbl

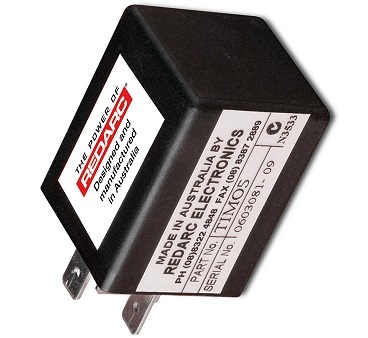

The TIM05 & TIM06 timers can be used in a 12V or 24V negative ground automotive system, are designed to plug into a standard automotive relay base and have the same pin numbers as a standard automotive relays (underside shown on diagram). Contacts operate in a similar way to a changeover relay.
The timer switches the internal relay to provide output on PIN 87. (Positive output only)
The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1).
Use Switch 2 to select time range between SECONDS and MINUTES.
Use the potentiometer to adjust time (increasing in clockwise direction).
The TIM05 & TIM06 can supply a maximum current of 10 AMPS.
Features:
User adjustable 1- 60 seconds/minutes
Change over type relay
Standard automotive relay base
Fully customisable upon request
Specifications:
Warranty: 2 Years
Input (Operating) Voltage: 12V/24V
Output Current Rating (Cont.): 10A
Length (mm): 75
Width (mm): 30
Height (mm): 24
Weight (kg): 0.07
