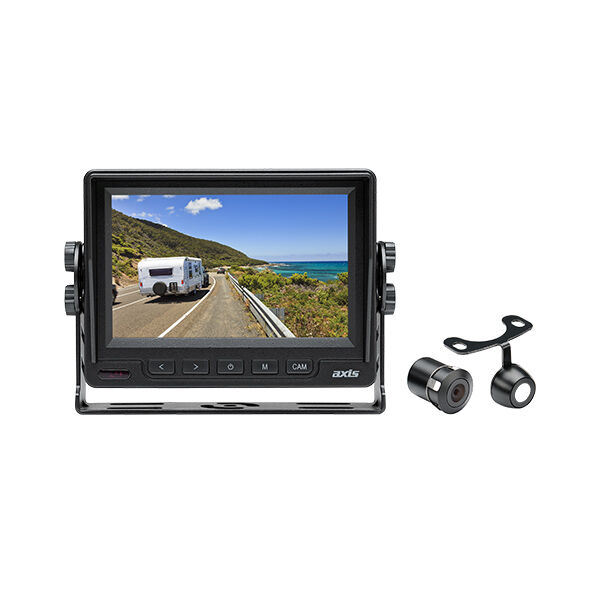

Axis 5" Monitor Reverse Camera Kit

A heavy duty 12/24V monitor and camera system for in-vehicle reversing safety applications. Suitable for cars, 4WD’s, caravans or trucks. The camera features dual mounting heads for license plate or surface insert mounting.
Specifications:
JS5001 MONITOR:
TFT Panel: New Grade A LCD, LED Backlight
LCD Size: 125mm (5-Inch) Diagonal
Display Format: 16:9
Resolution: 800 x 480
Brightness: < 450 CD/M2
Viewing Angles: 90 Deg. Left/Right/Up/Down
Video System: Auto PAL/NTSC Select
Video Connections: 2 x 4-Pin (Female)
Reverse Trigger: Assignable to Cam 1 or 2 (via Menu)
Camera View: Input Selectable (CAM Button), Input Override in Reverse Mode
Monitor View: Normal/Mirror Image Select
Guidelines: Selectable
Audio: On Board Speaker
Main Menu: Brightness/Contrast/Colour/Volume/Reset/Slideshow/Language/Reverse Priority and Delay
Casing Material: 100 degC Heat/Flame Proof (UL94V-0) ABS Material
Power Input: 10-32V DC (Negative Ground)
Dimensions: 136W x 102H x 25D mm (excluding bracket)
Included: Stand Mount, U-Shape Mount, Remote Control, Power Cable Assembly, Sunshade
C20 CAMERA:
Imaging Device: 1/4” Full Colour CMOS
Imaging Sensor: PC7070
Effective Pixels: 704 x 576
Lens: Full Glass
Viewing Angle: 170 degree (Diagonal), 110 degree (Horizontal)
Video Format: PAL/NTSC (Selectable)
Parking Guidelines: Yes (Selectable), Type (Adjustable), Height & Width (Adjustable)
One Button Control: Image Orientation Select (Mirror/Normal), Video Mode Select (PAL/NTSC), Guideline Type Adjust, Guideline Height Adjust, Guideline Width Adjust
Image Orientation: Mirror, Normal, Upside-Down Mirror, Upside-Down Normal (Selectable)
Minimum Illumination: 0.3 Lux
Water/Dust Protection: IP67
Power Input: 12/24V DC
Mounting: Number Plate or In-Bumper
Connection: RCA
Dimensions: 16.5mm x 23mm (D)
Included: Dual Mounting Heads (Butterfly and Bumper Fit), Installation Hardware, Metal Hole Saw for Bumper Fit Installation, 6m Camera to Monitor Lead (RCA Male) with Power Wire for Reverse Triggering, RCA to 4-Pin Adaptor
