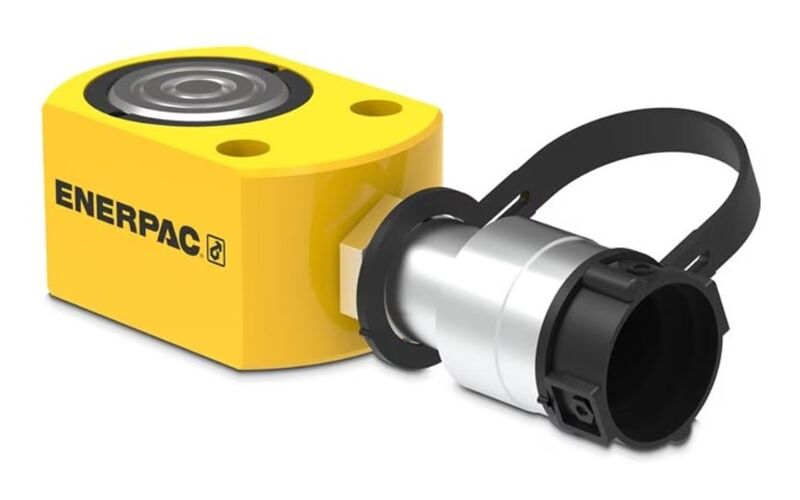

RSM100 Hydraulic Cylinder
SKU:RSM100
RRP $2,244.30
$1,571.02
SAVE $673.28 (30%)
Not Available In Store
Calculate Shipping
RSM-Series Low Profile Hydraulic Cylinders provide superior durability, safety, and quality in a compact and convenient format. TheyÂ’re the perfect choice for general lifting and production applications where space is limited.
Specifications:
Maximum Operating Pressure (bar): 700
Capacity Class (tonnage):10
Maximum Cylinder Capacity Advance (kN): 101
Stroke (mm): 11
Collapsed Height A (mm): 43
Extended Height B (mm): 54
Return Type: Single-Acting, Spring Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance (cm2): 14,5
Oil Capacity Advance (cm3): 18
Surface Treatment: Paint
Coupler: CR400 Coupler
Weight (kg): 1,4
Specifications:
Maximum Operating Pressure (bar): 700
Capacity Class (tonnage):10
Maximum Cylinder Capacity Advance (kN): 101
Stroke (mm): 11
Collapsed Height A (mm): 43
Extended Height B (mm): 54
Return Type: Single-Acting, Spring Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance (cm2): 14,5
Oil Capacity Advance (cm3): 18
Surface Treatment: Paint
Coupler: CR400 Coupler
Weight (kg): 1,4
(RSM100)
| SKU | RSM100 |
| Barcode # | 9310754895922 |
| Brand | Enerpac |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.150m |
| Shipping Length | 0.300m |
