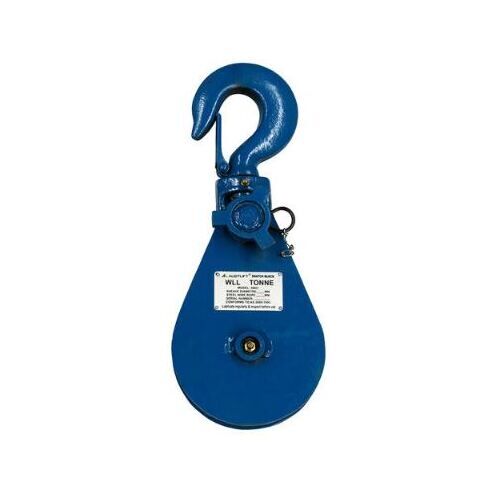

Snatch Block with Hook Head 8T 8" Suits 16-18mm steel rope
SKU:140508
RRP $783.75
$534.60
SAVE $249.15 (32%)
Not Available In Store
Calculate Shipping
Summary:
Austlift manually operated snatch blocks are popular in the mining, construction, off shore rigging and heavy duty lifting applications. Complies with AS/NZS 2089.
Made from hi-tensile steel body and cast steel sheave.
Steel Wire Rope References:
6x25Fi+IWRC or 6x36S+IWRC 1770 wire rope is recommended.
Diameter of the rope can be reduced by using higher tensile rope.
Check wire rope MBS and load rating of equipment before operation.
Specifications:
WLL (T): 8
Sheave dia (mm): 203
Wire rope (mm): 16-18
Unit weight (kg): 16.5
Austlift manually operated snatch blocks are popular in the mining, construction, off shore rigging and heavy duty lifting applications. Complies with AS/NZS 2089.
Made from hi-tensile steel body and cast steel sheave.
Steel Wire Rope References:
6x25Fi+IWRC or 6x36S+IWRC 1770 wire rope is recommended.
Diameter of the rope can be reduced by using higher tensile rope.
Check wire rope MBS and load rating of equipment before operation.
Specifications:
WLL (T): 8
Sheave dia (mm): 203
Wire rope (mm): 16-18
Unit weight (kg): 16.5
(140508)
| SKU | 140508 |
| Barcode # | 9.31075E+12 |
| Brand | Austlift |
| Shipping Weight | 17.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.100m |
| Shipping Length | 0.550m |
