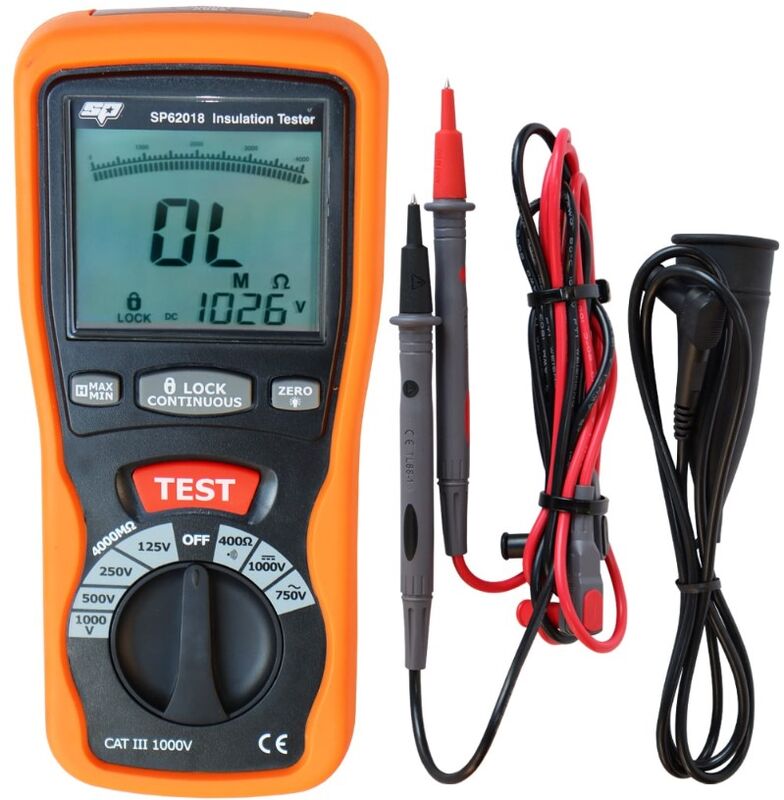

SP EVA Digital Insulation Tester -1000v

Uses a high voltage, low current DC charge to measure the resistance within wires and motor windings to identify current leakage and faulty or damaged insulation
FEATURES
Test voltage ranges: 125V, 250V, 500V, 1000V
Measures: Voltage up to 1000V DC, 750V AC and resistance up to 4000MΩ
Min/Max record mode
Live circuit detection prevents insulation tests if voltage >30V
Auto null of test lead resistance
1mA output current on insulation test
200mA short circuit on continuity range
Large digital LCD dual display with backlight
Rugged design for heavy duty use
Lock down test button for hands free use
Auto power off
Hold function
CAT III 1000V
