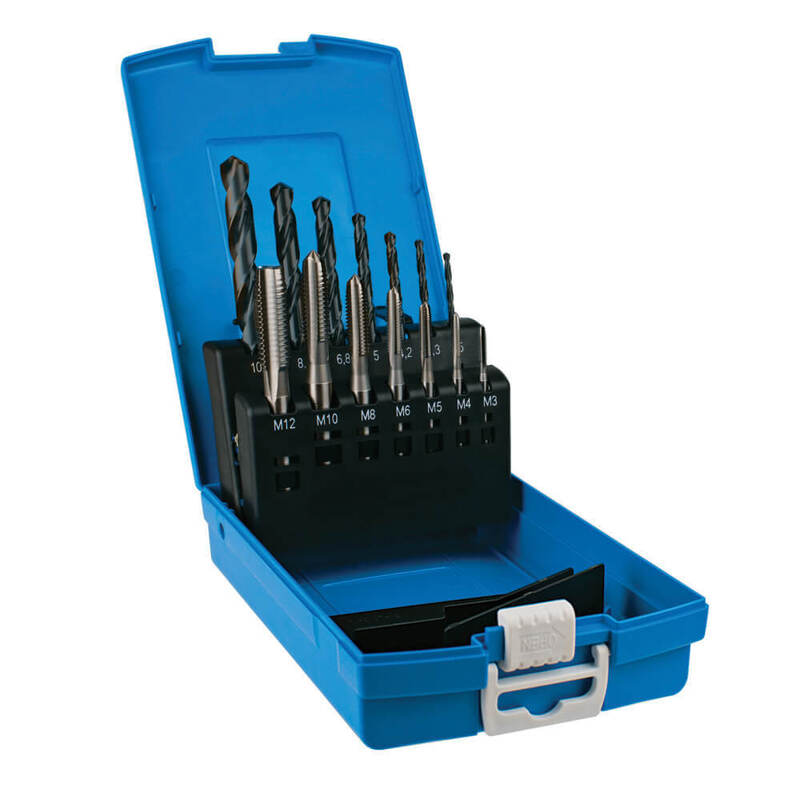

Sutton T3850014 Metric Tap and Drill Set 14 piece

Dimensions
d1: M3-M12
d2 (mm): 3.1-9.0
l1 (mm): 48.0-89.0
l2 (mm): 11.0-29.0
l4 (mm): 5-10
sq: 2.5-7.10
z: 3-4
Drill Size (mm): 2.5-10.2 (drill)
Pitch (mm): 0.5-1.75 (pitch)
Features
General purpose use
Suitable for materials up to 1000N/mm2
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Intermediate
